The waterproofing of a section of the roof of the commercial building ‘Tim Pharma’ Ltd. in Šabac has been completed. Insulation ‘SmartRoof Thermal’ was applied to the existing roof panel, which was leaking at several points, to fill the gaps between the roof panel joints, with ‘Smart Roof Top’ used as a leveling layer, resulting in a total insulation thickness of 10 cm. Following this, a UV-resistant ‘Sikaplan 15G’ waterproofing membrane with a thickness of d=1.5mm was installed. Roof penetrations, supports, and joints of metal coverings were waterproofed using a liquid waterproofing membrane ‘Sikalastic 641’.

The total area of the renovated roof section is approximately P=500 m2.

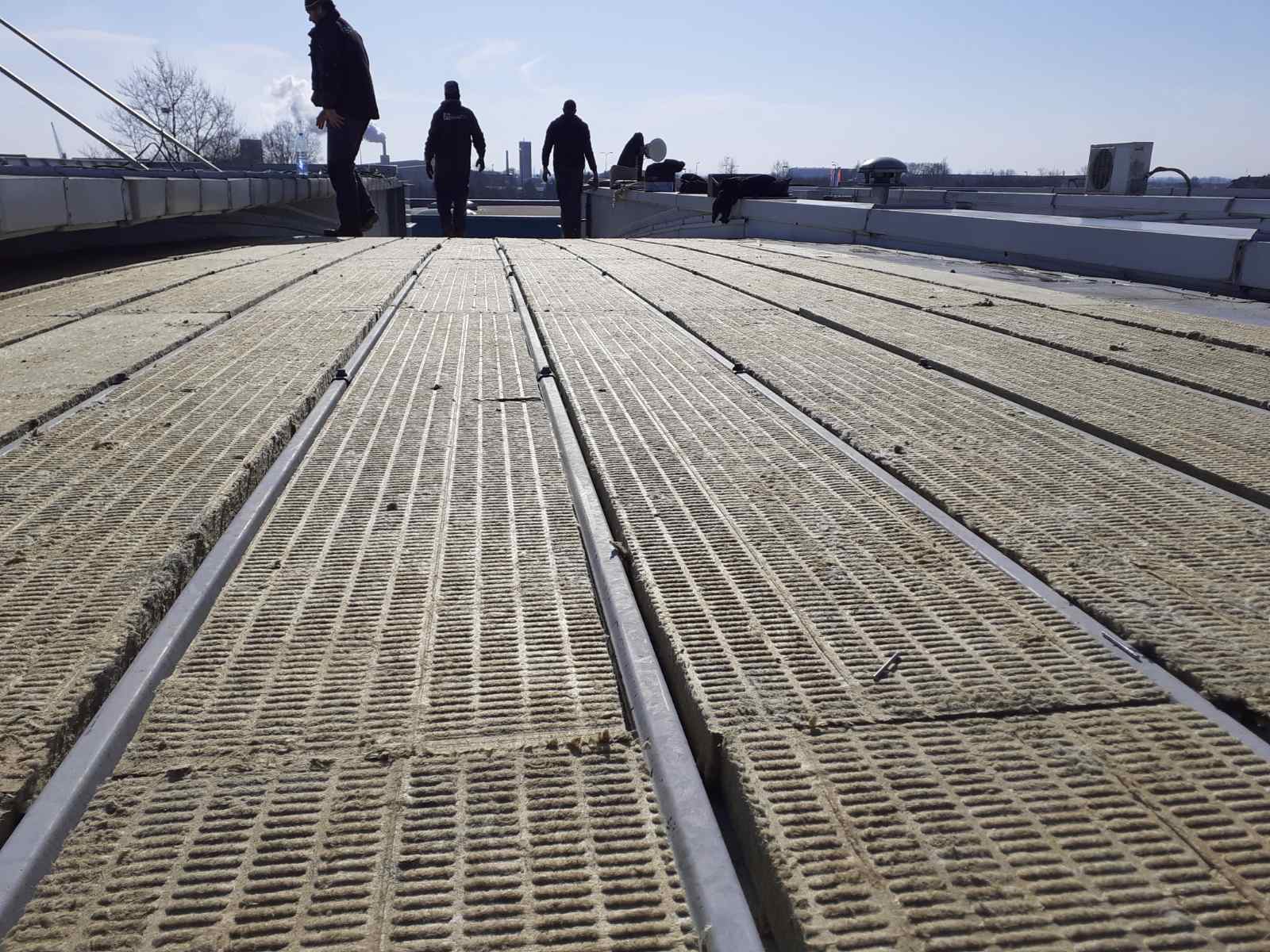

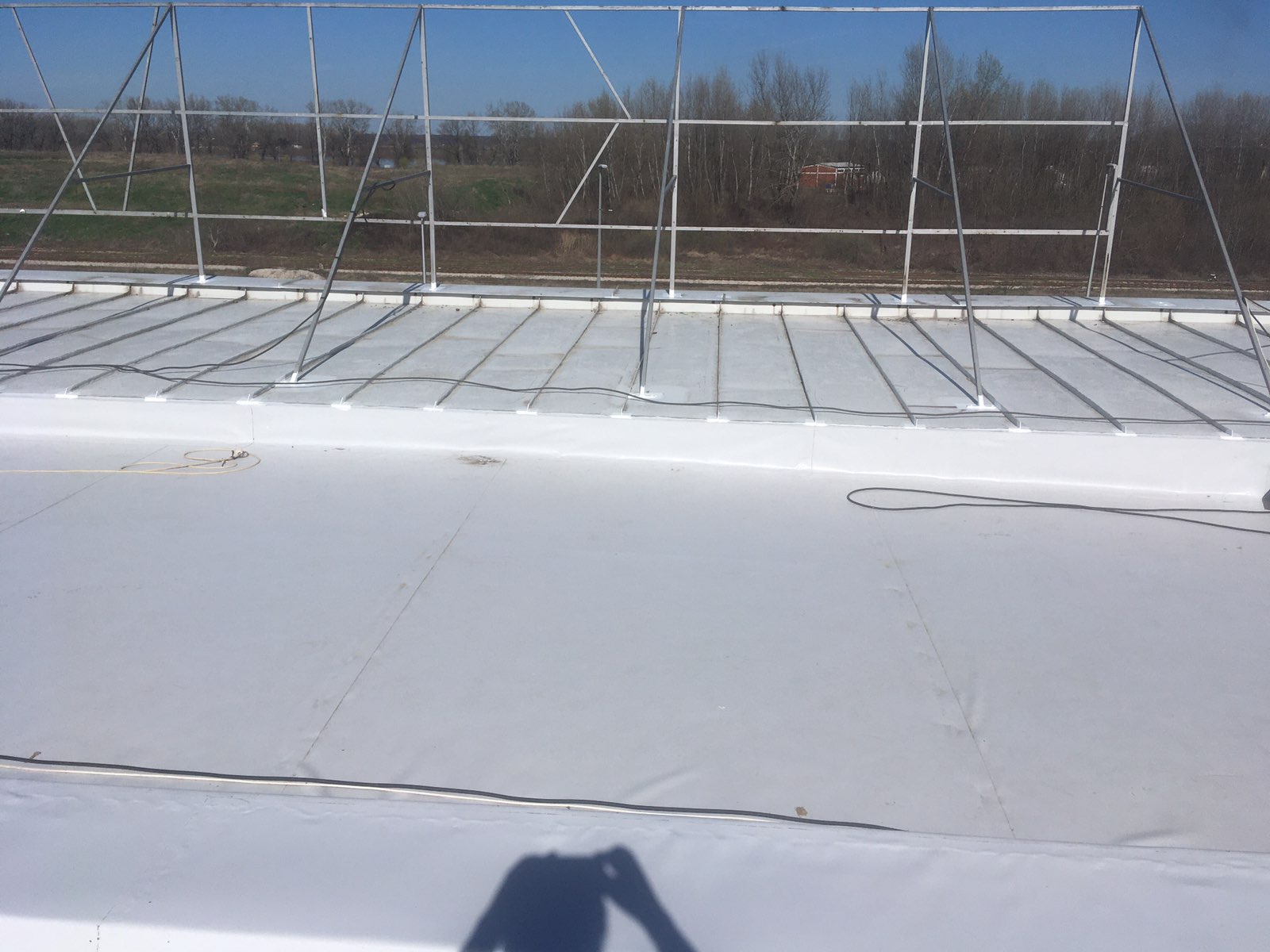

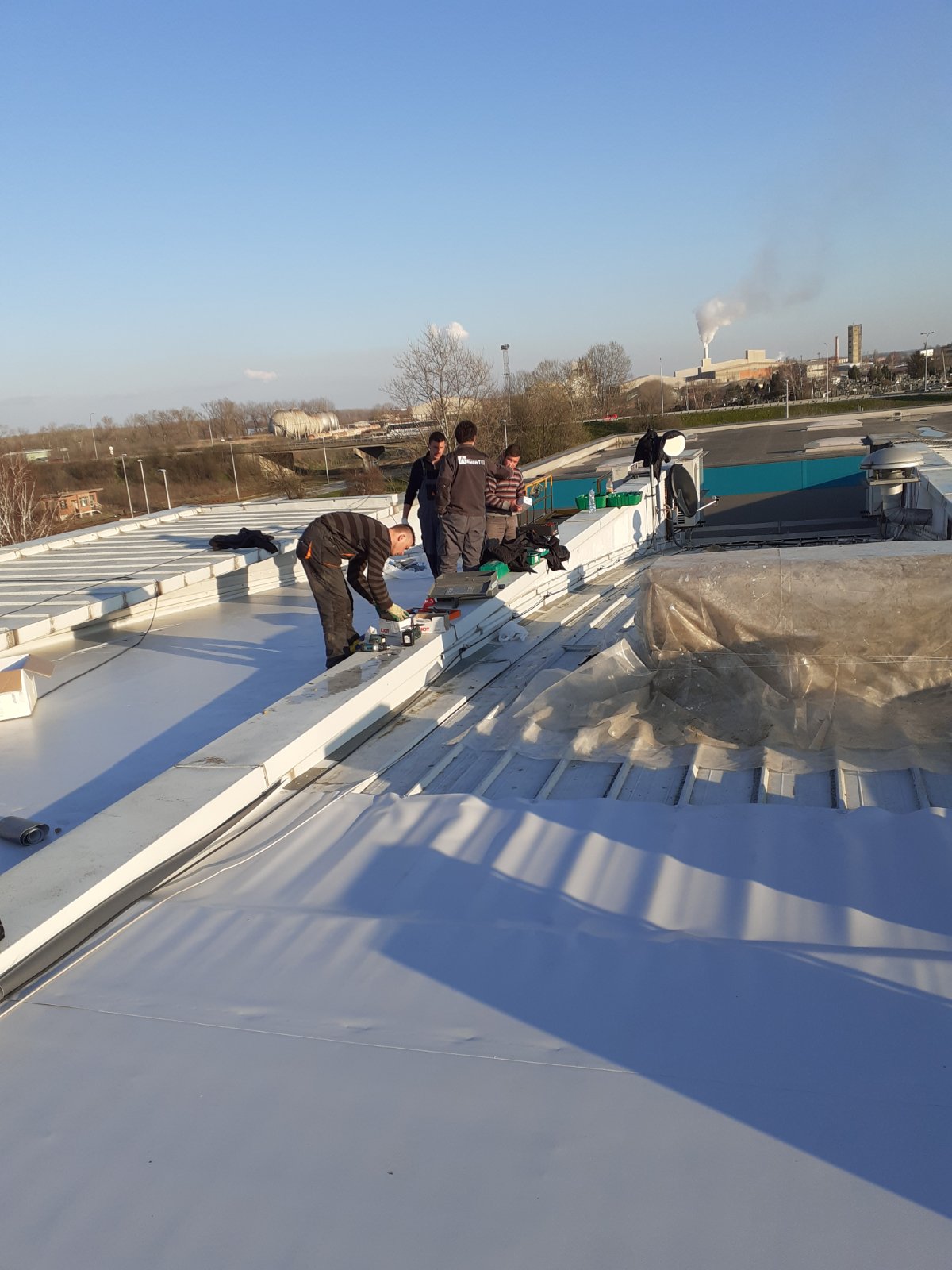

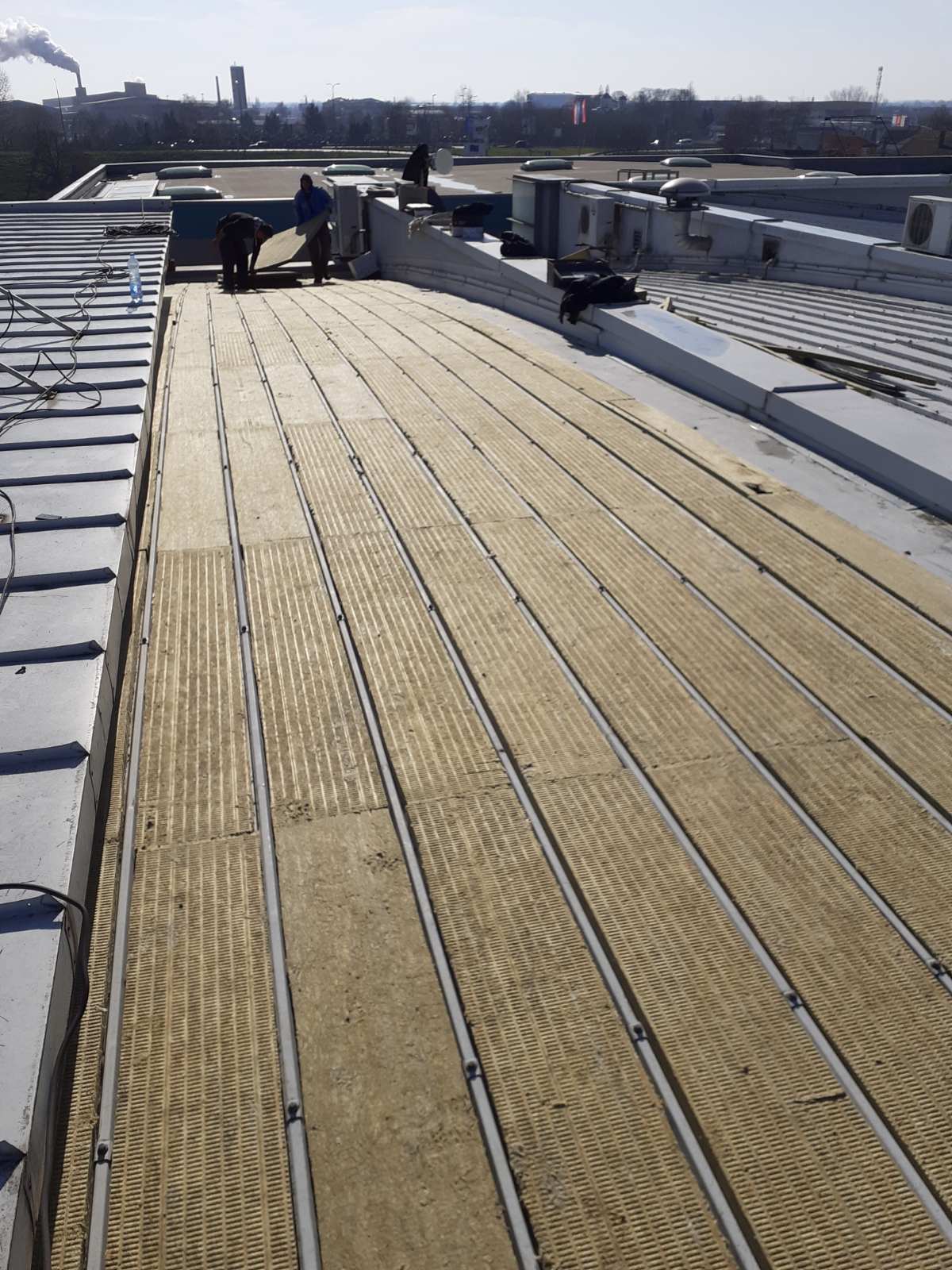

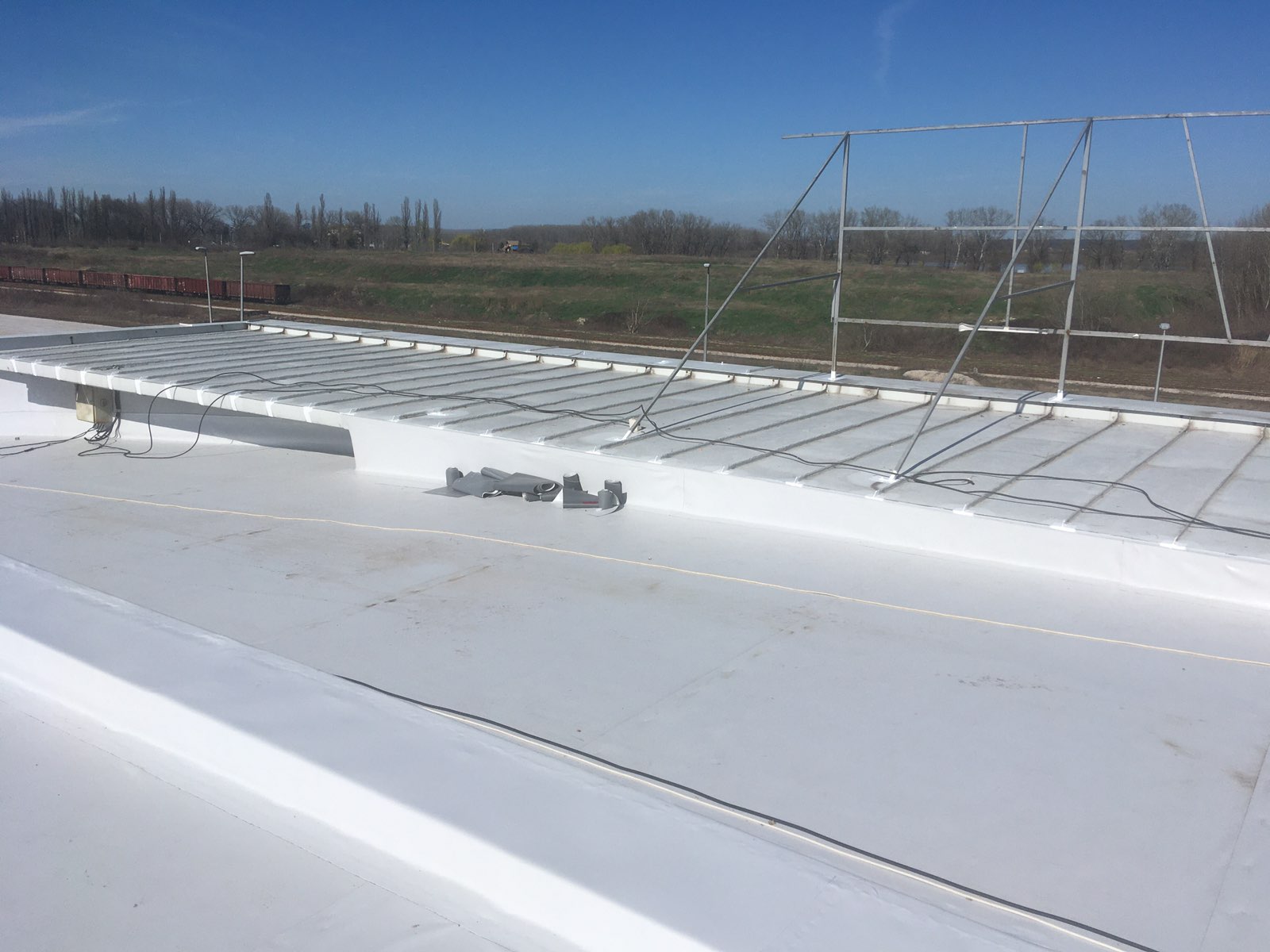

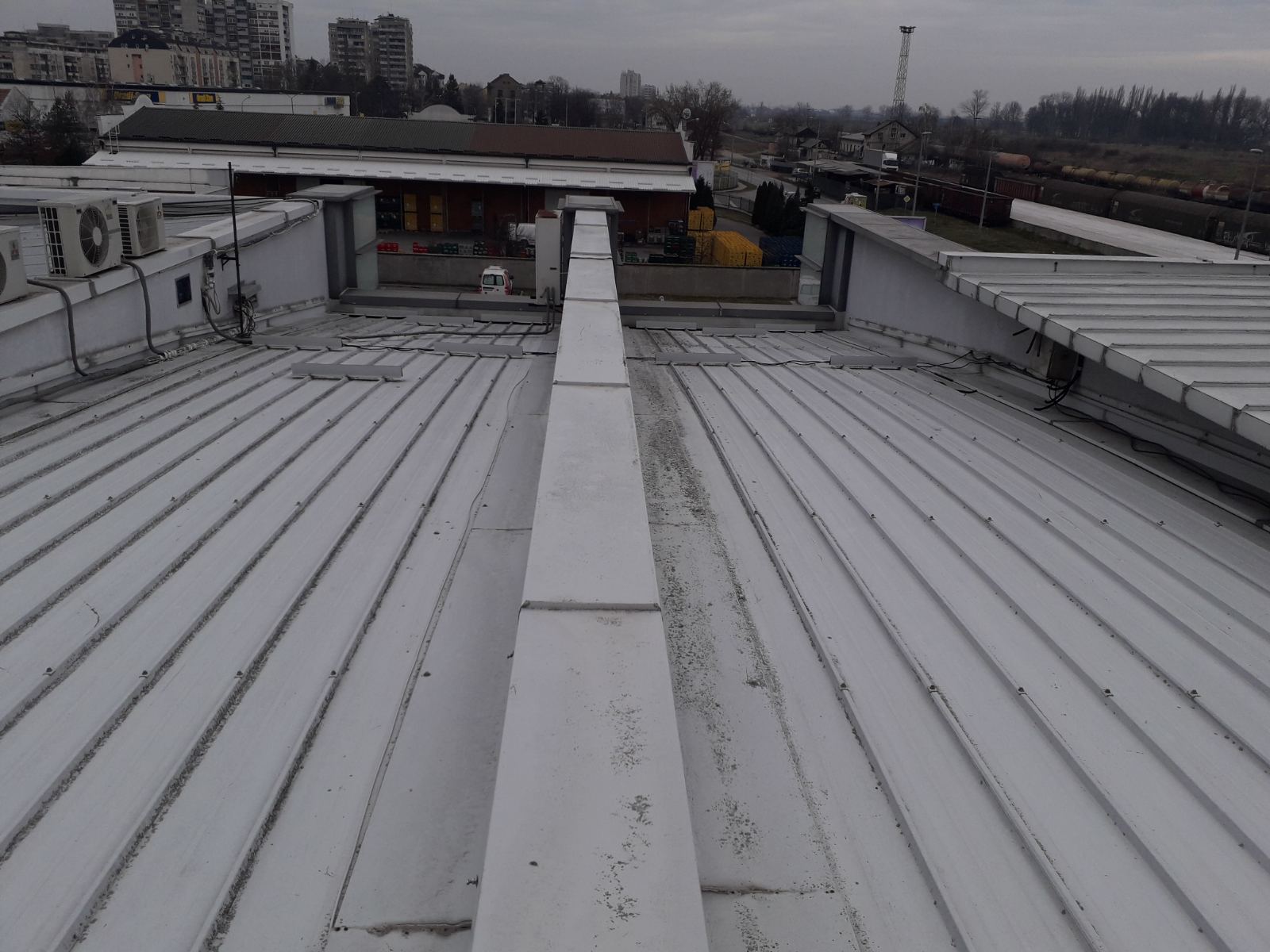

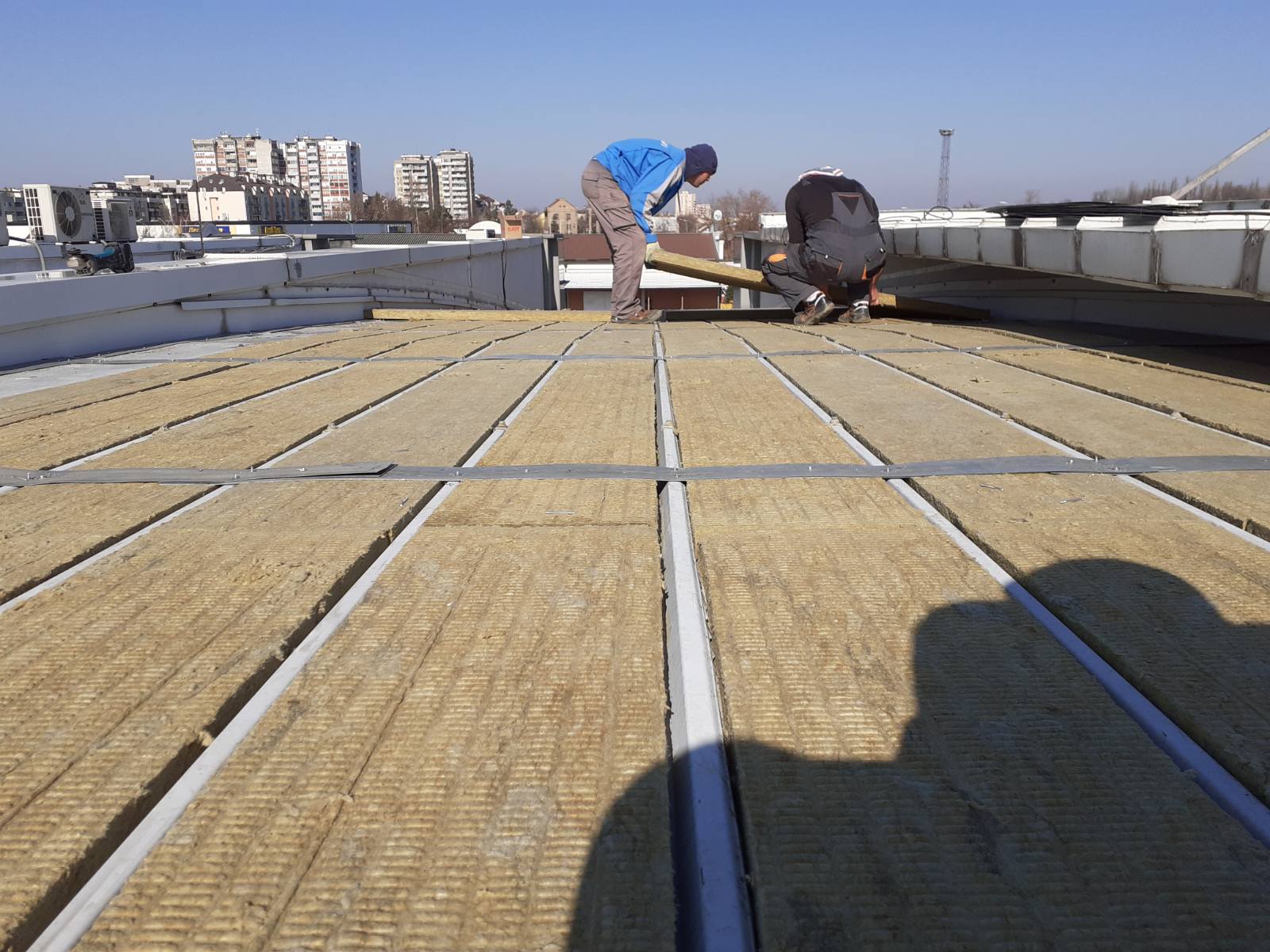

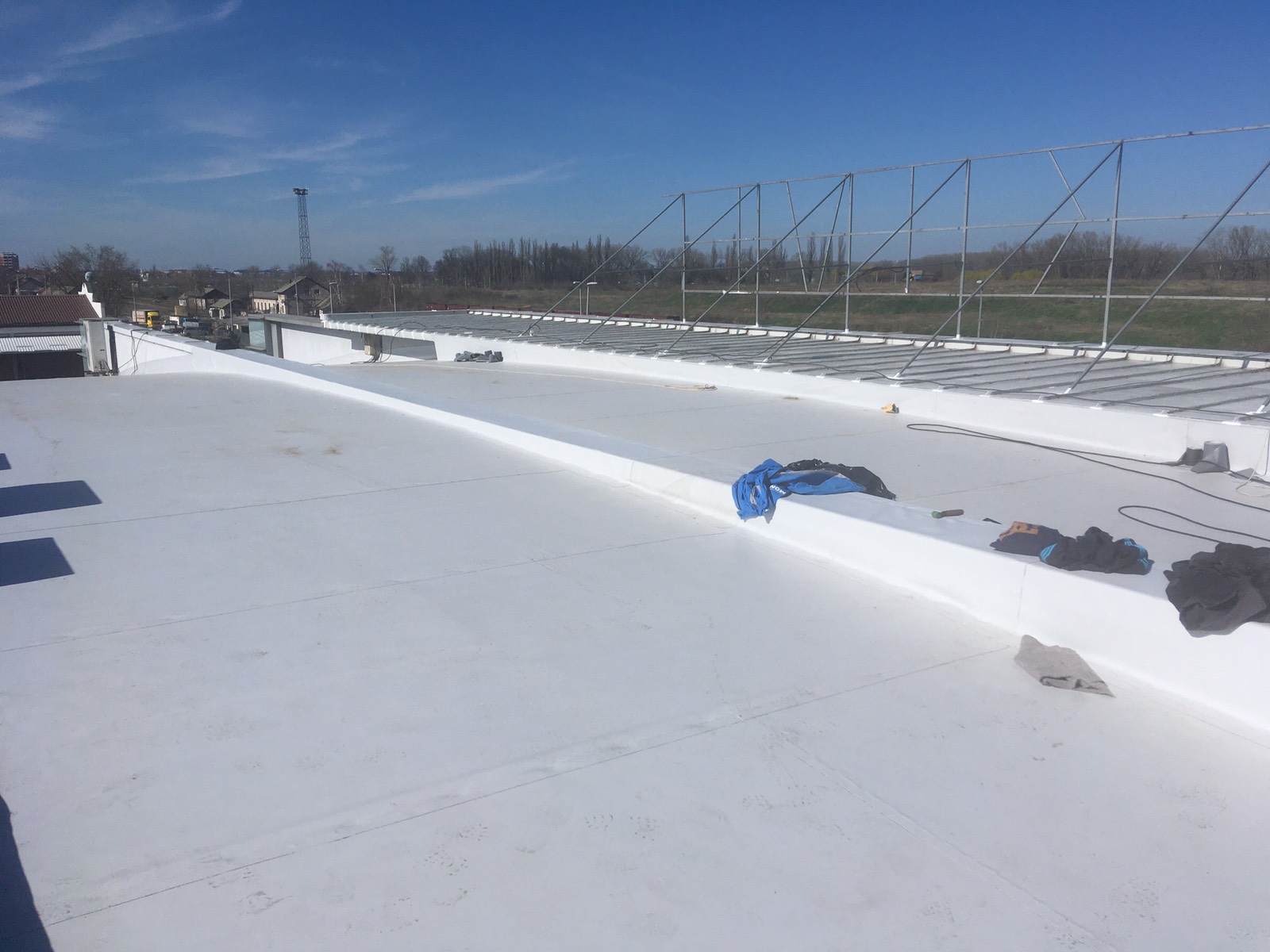

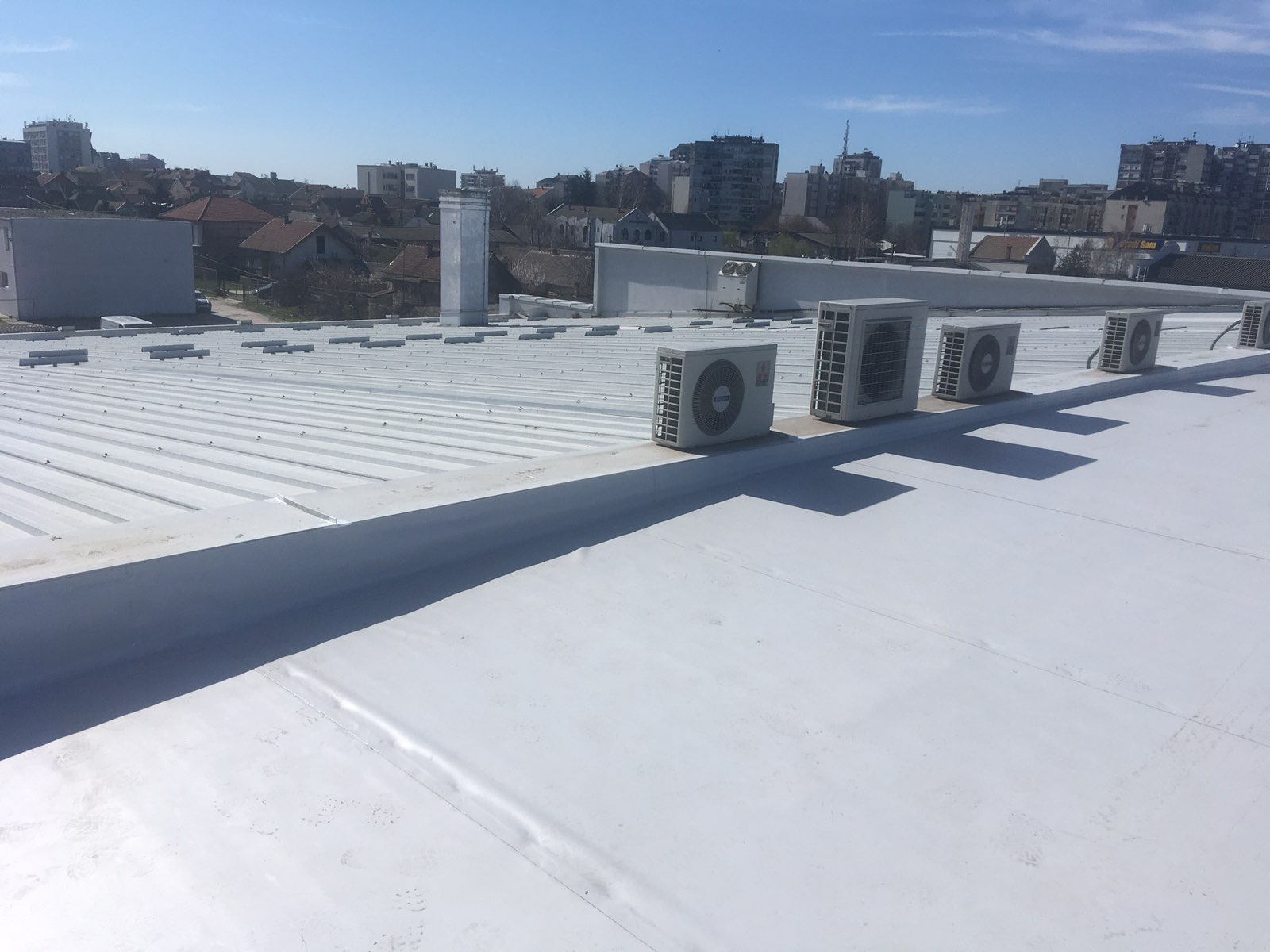

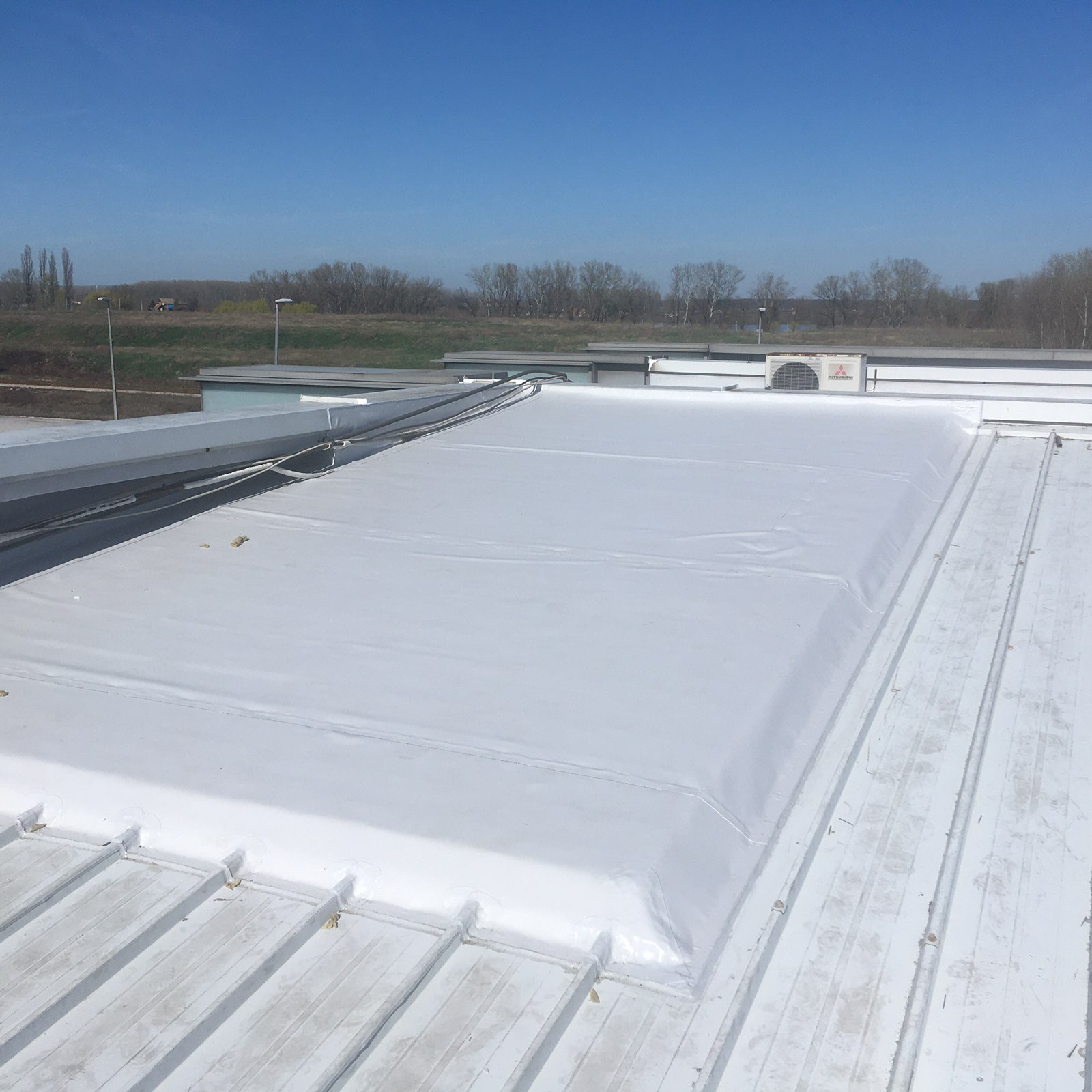

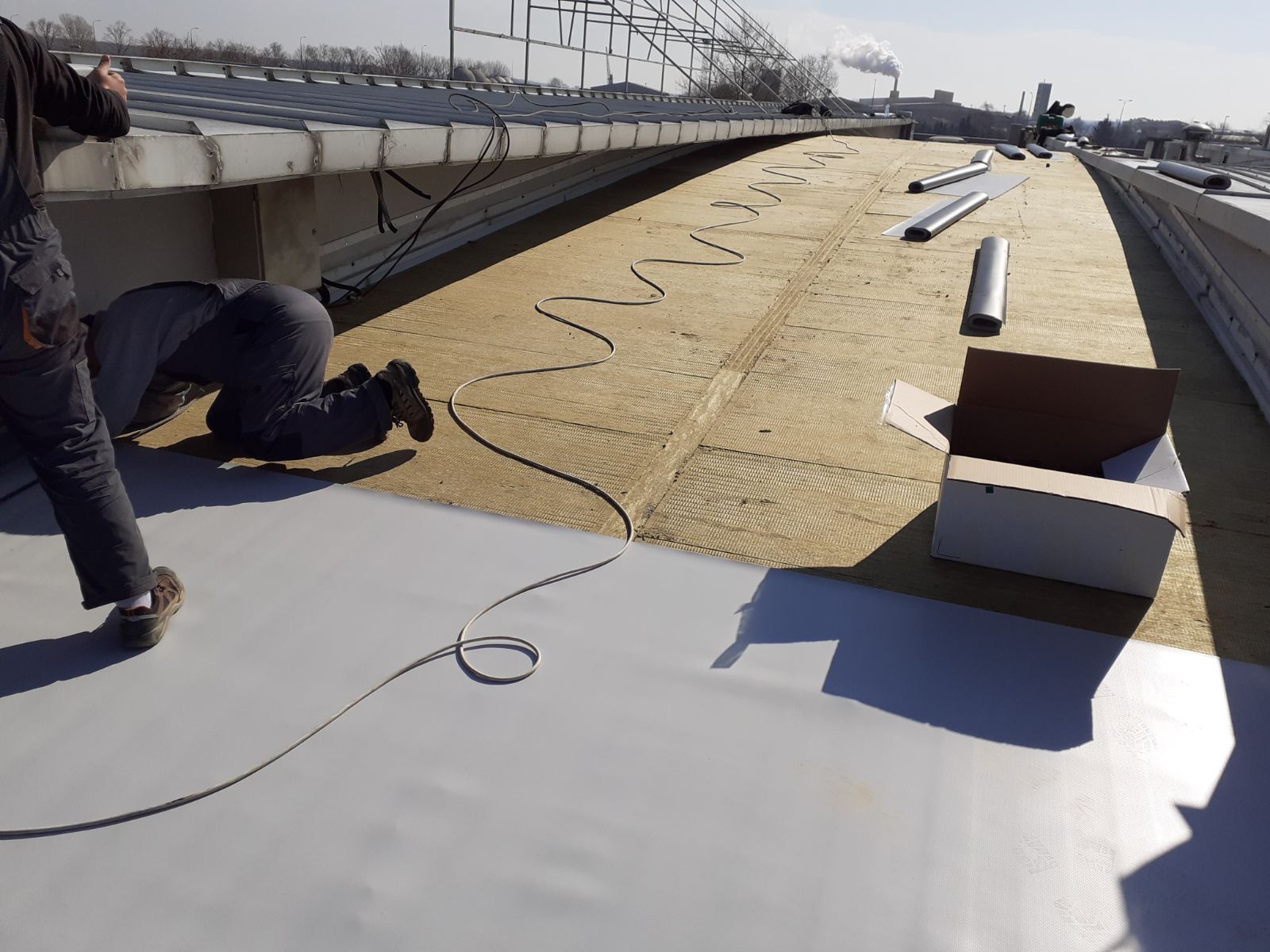

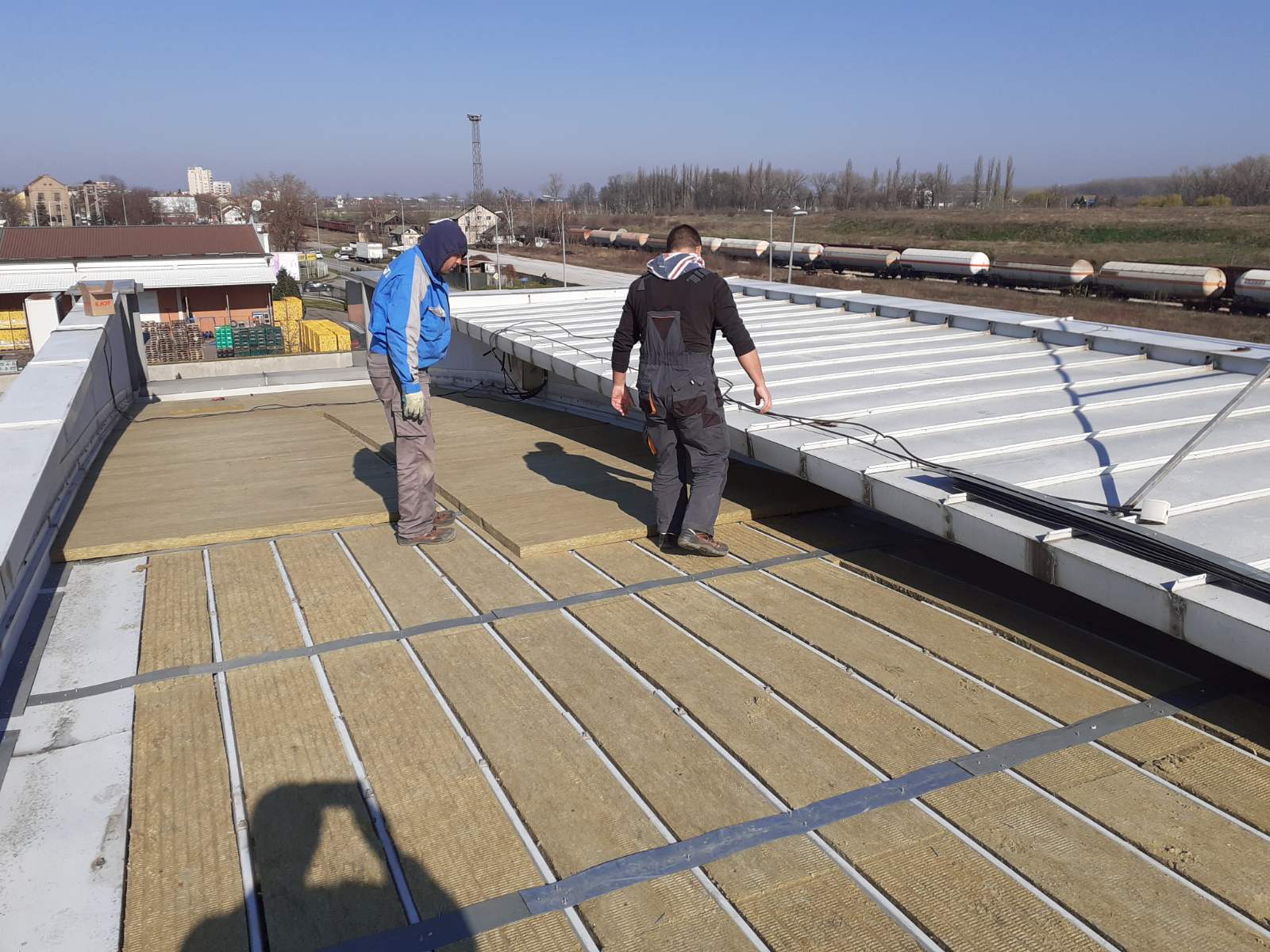

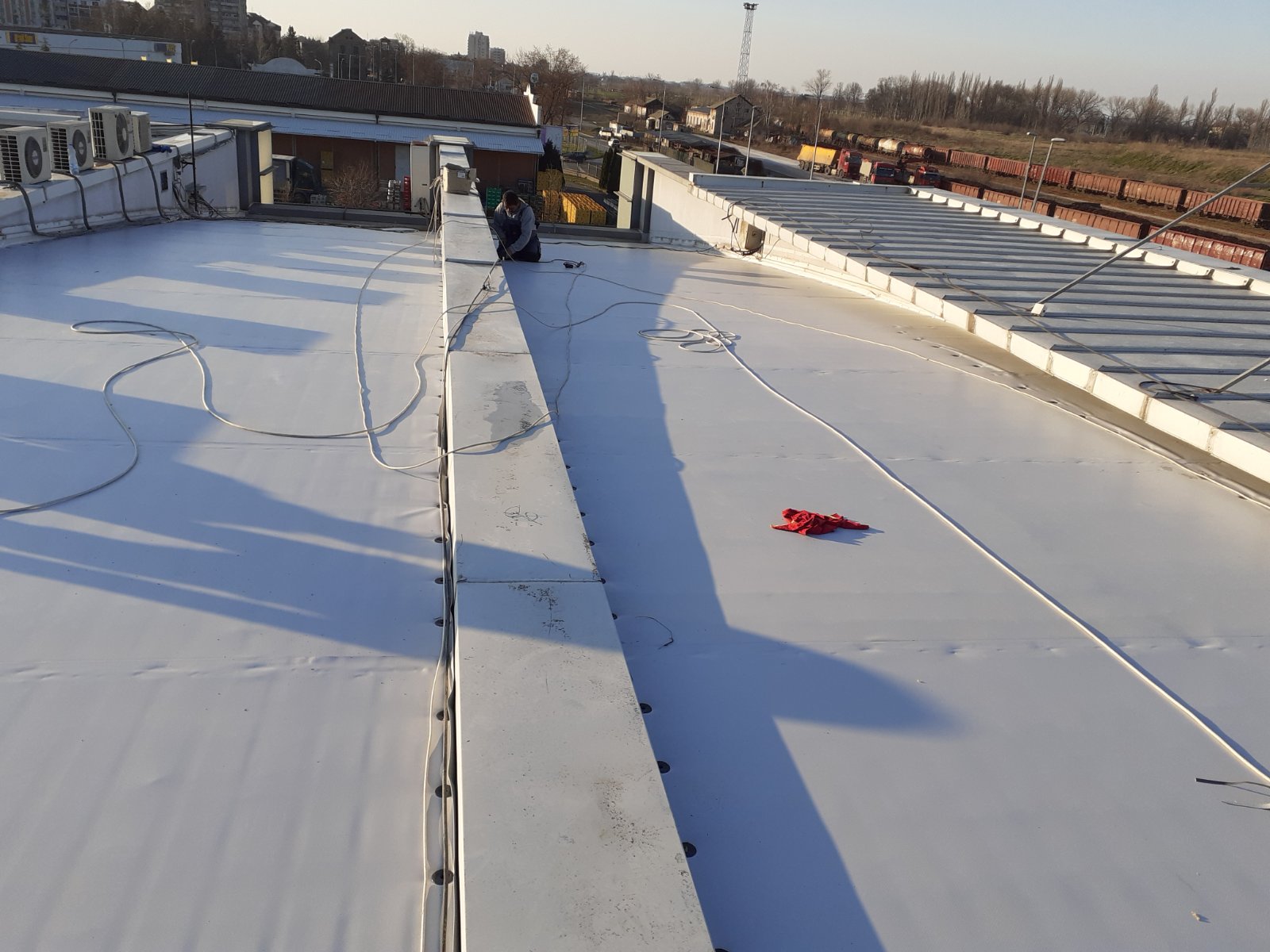

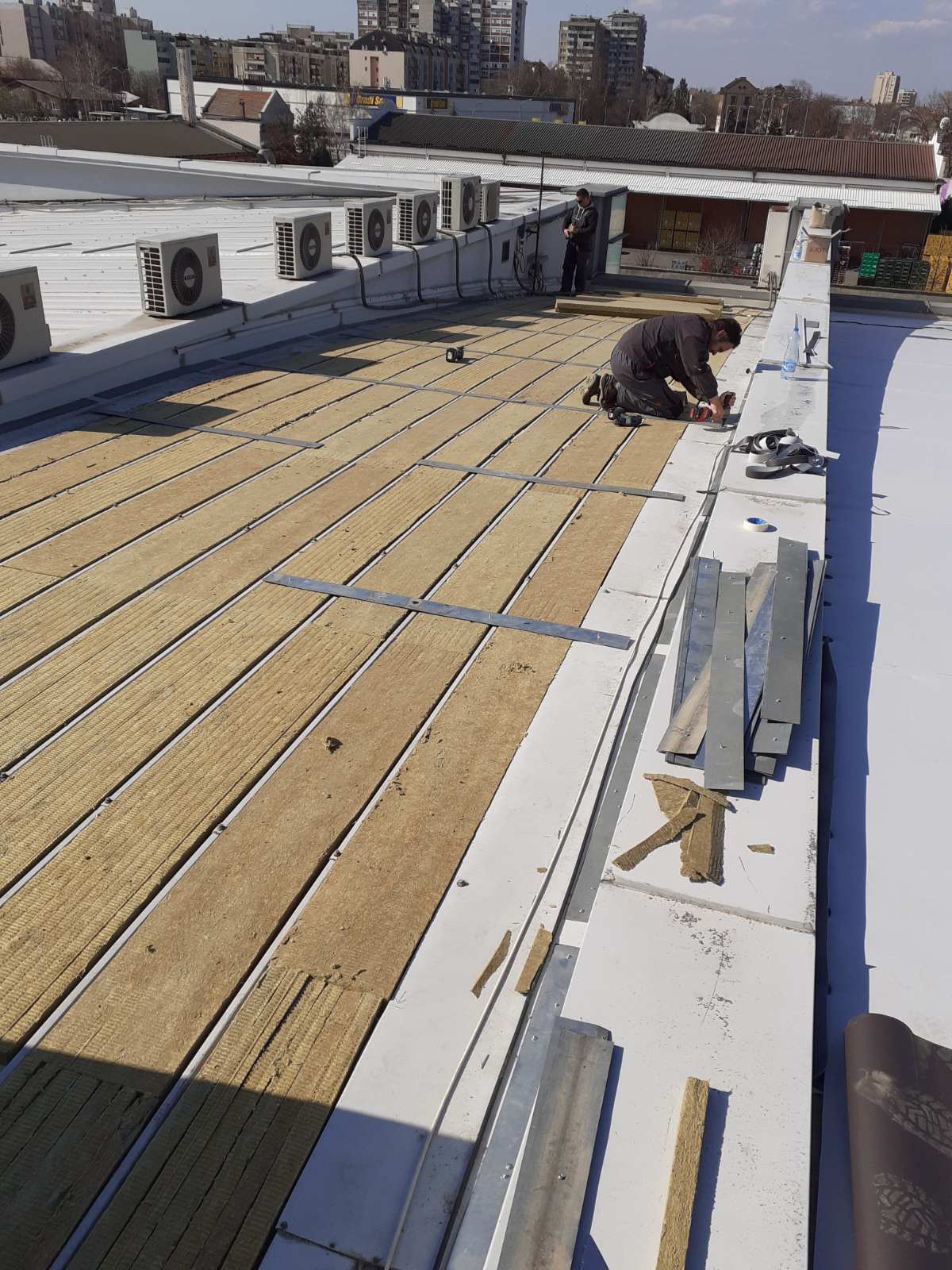

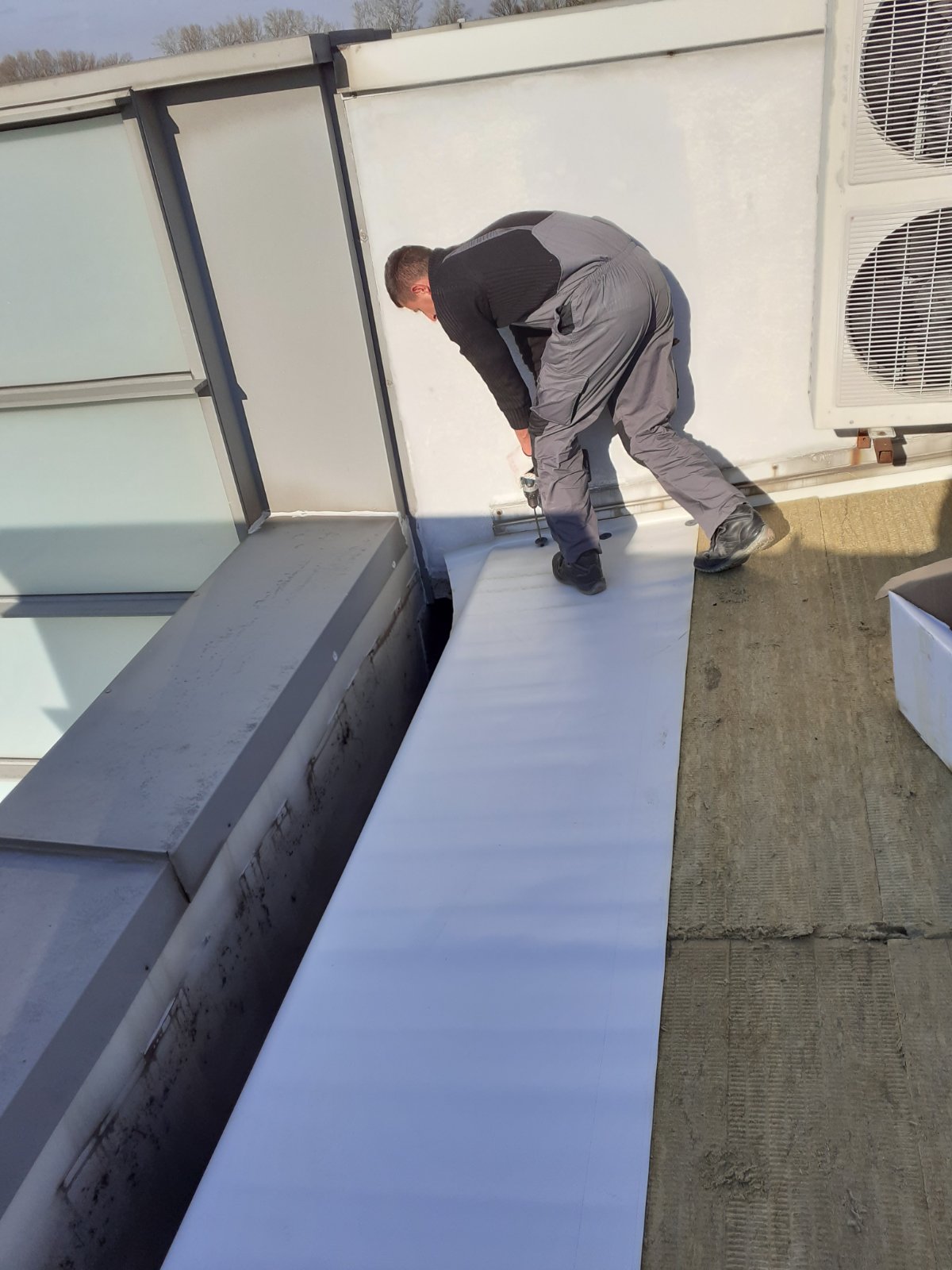

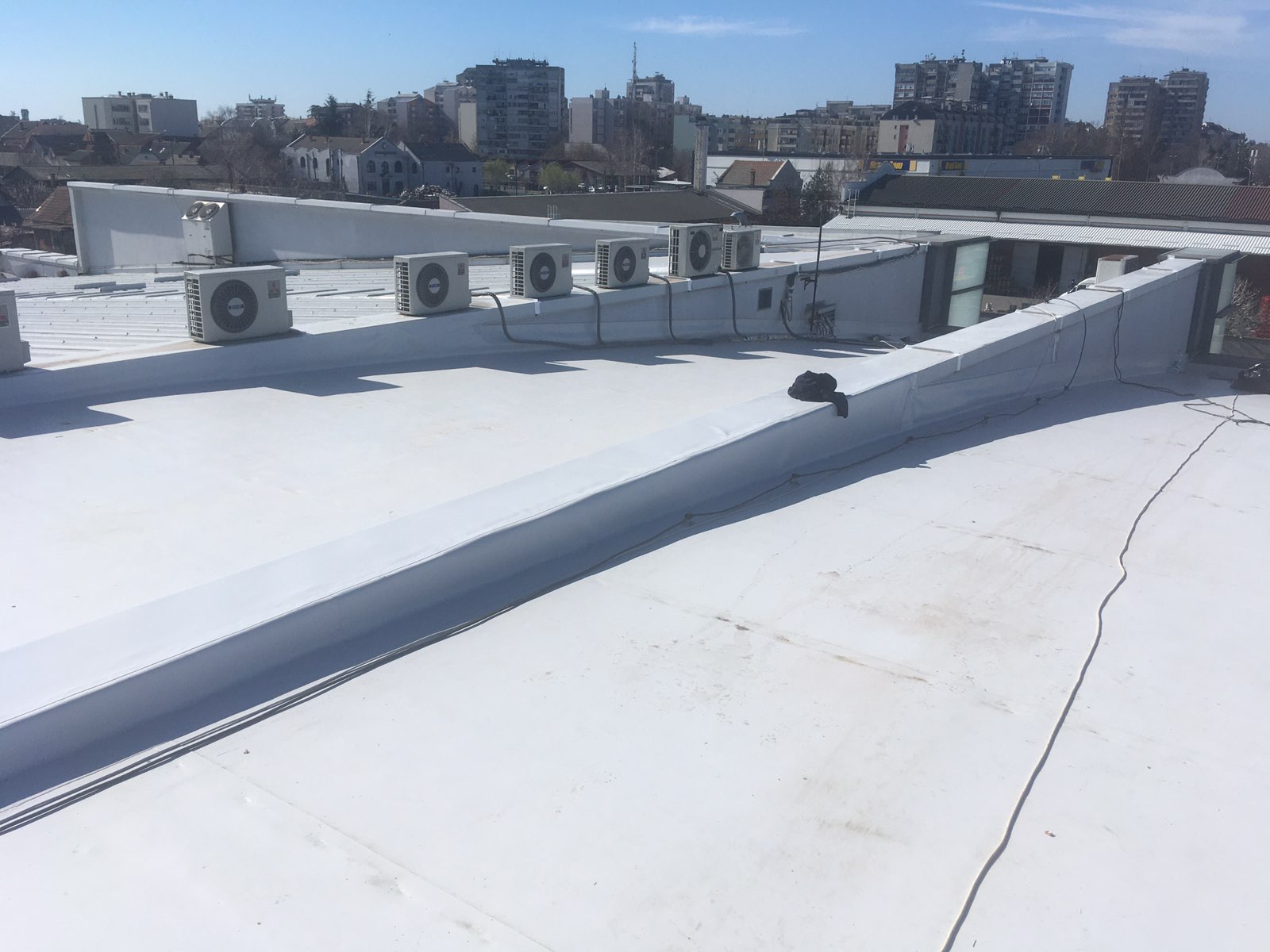

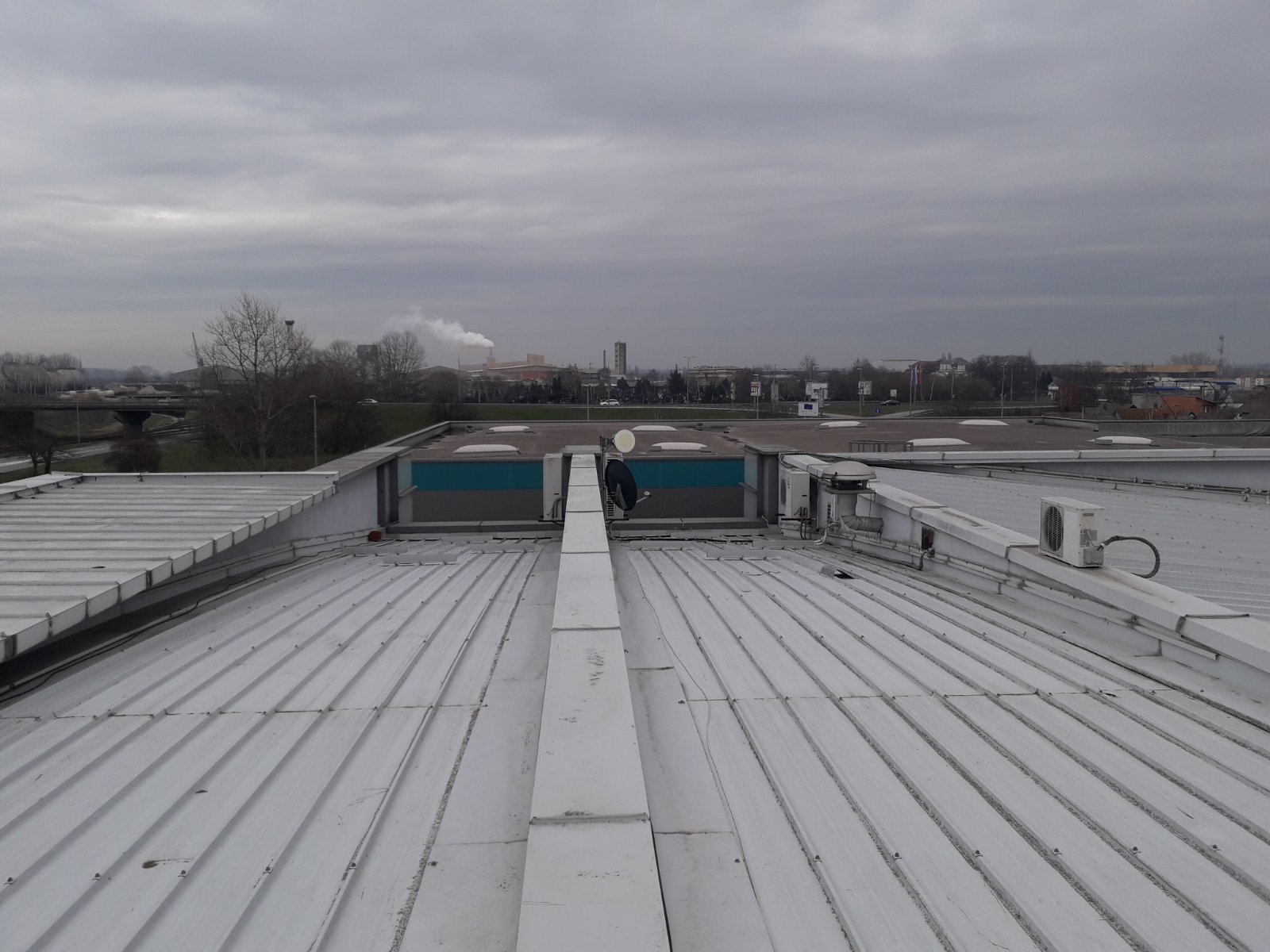

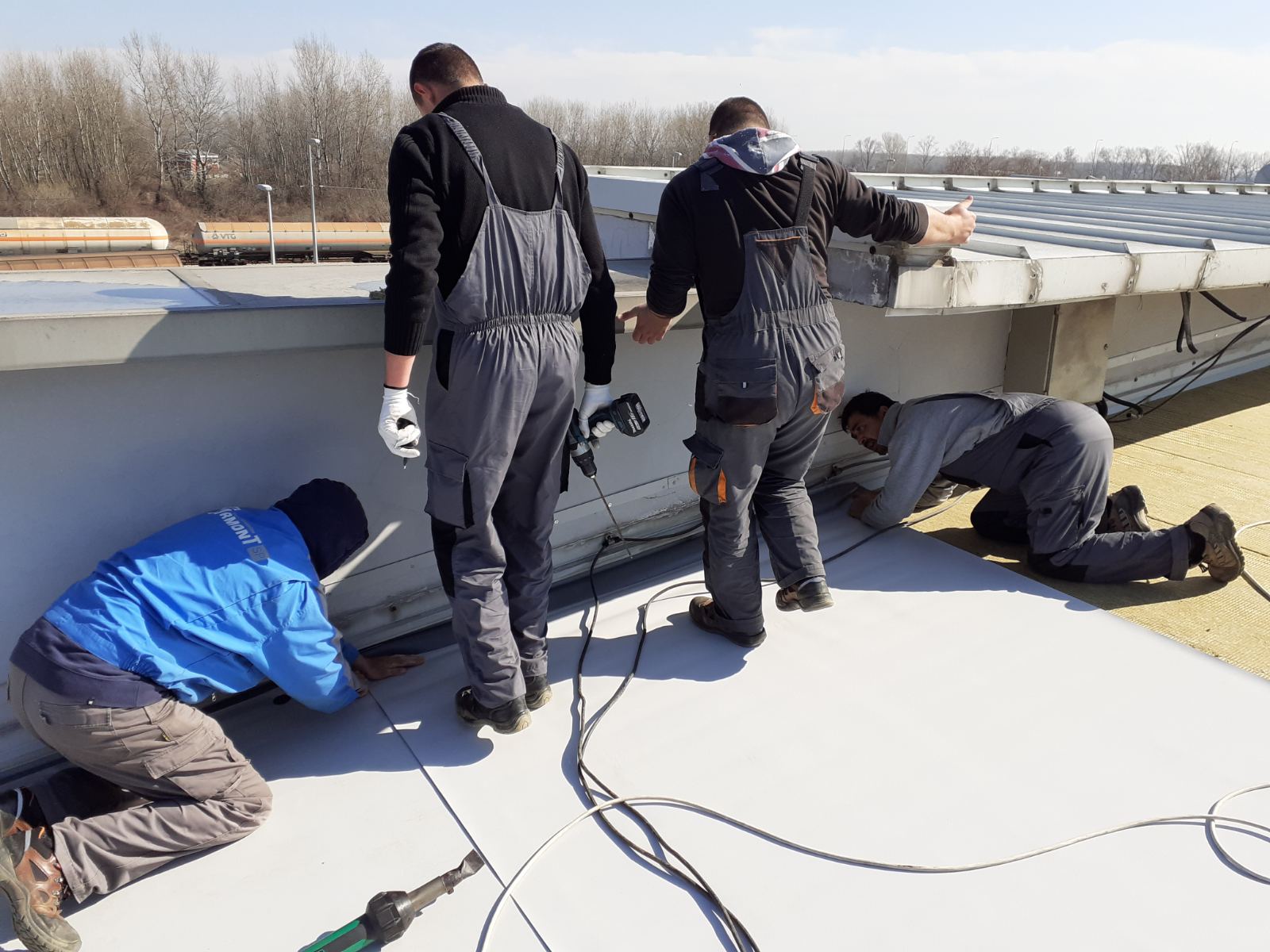

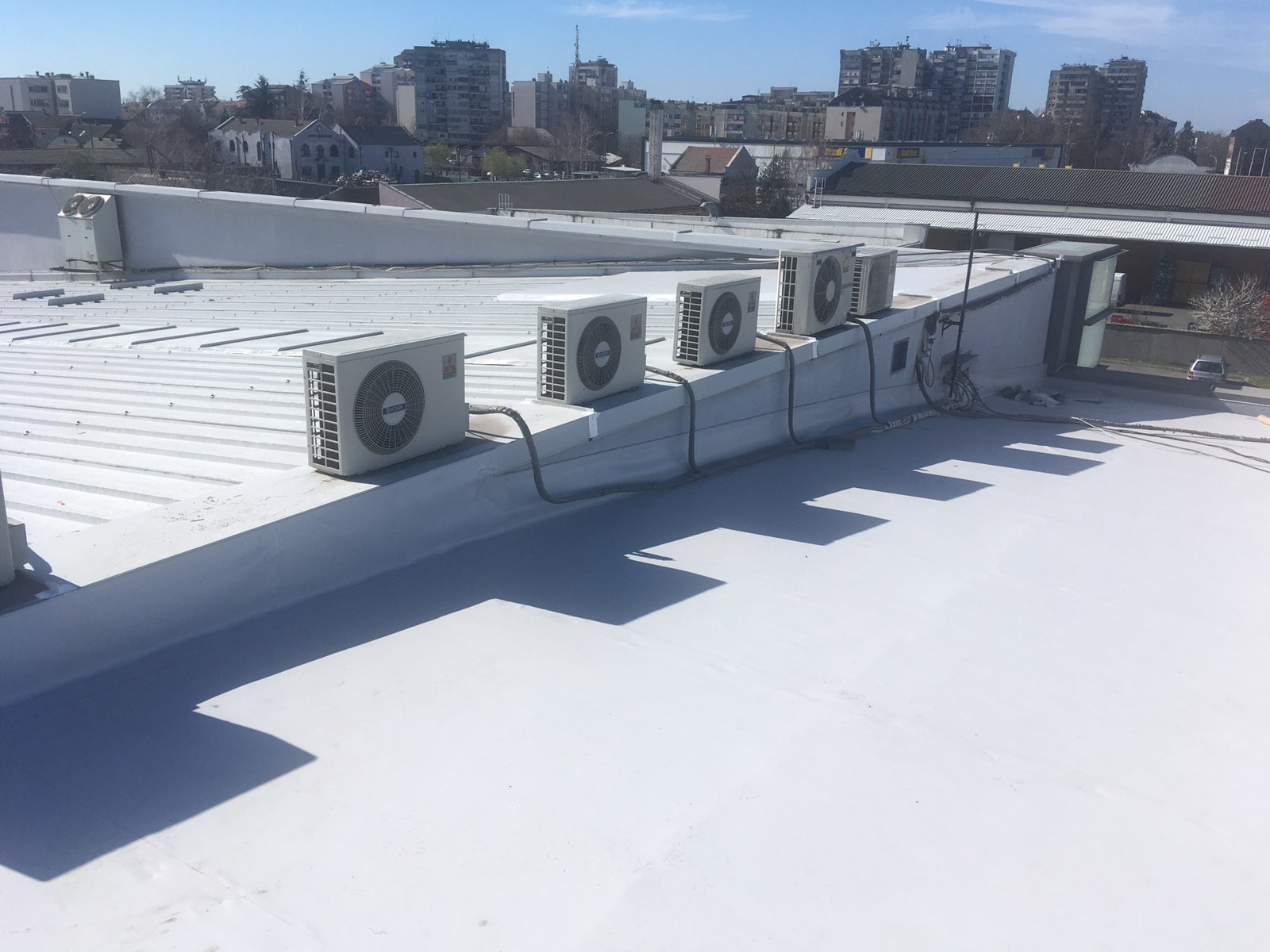

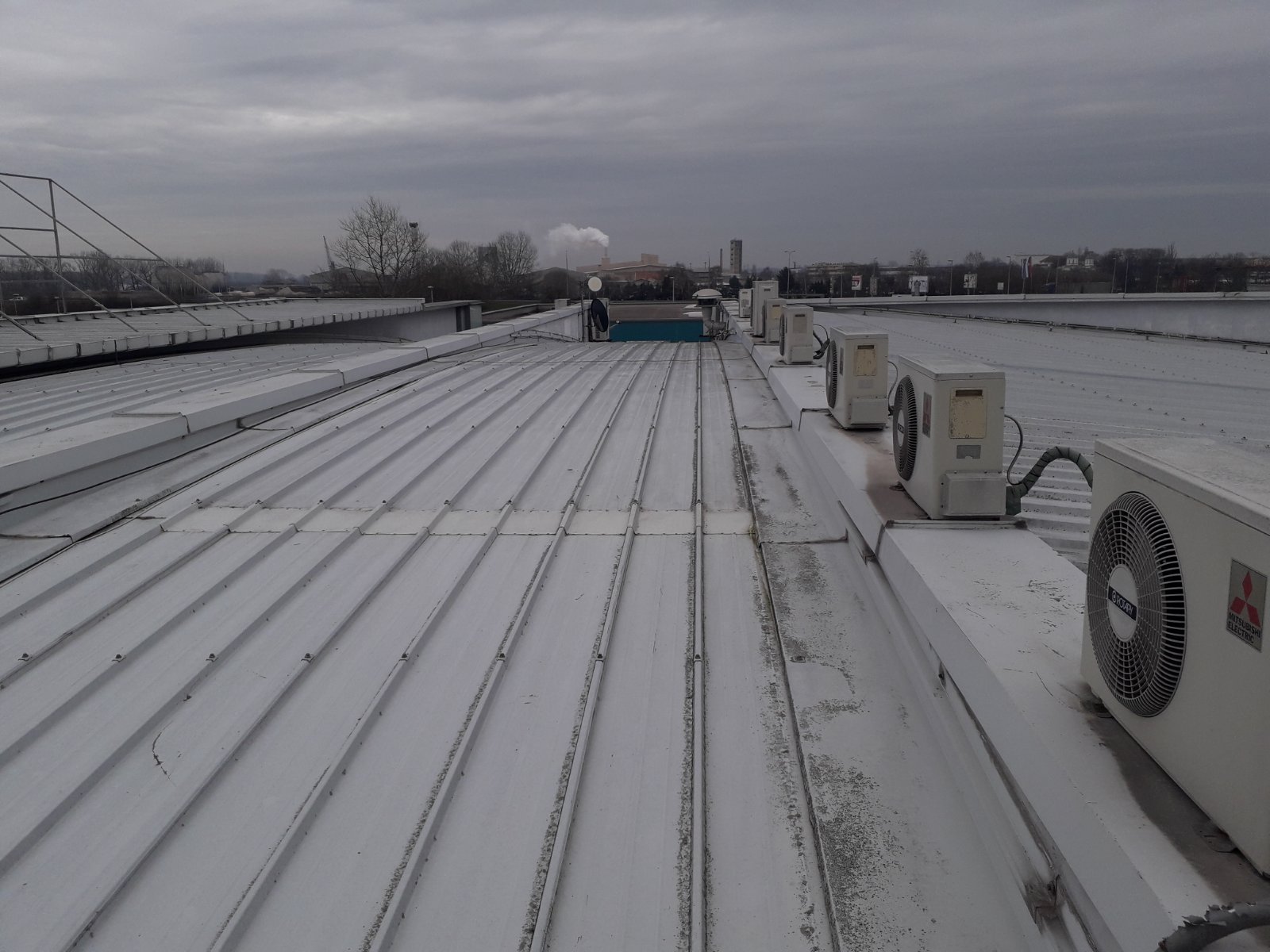

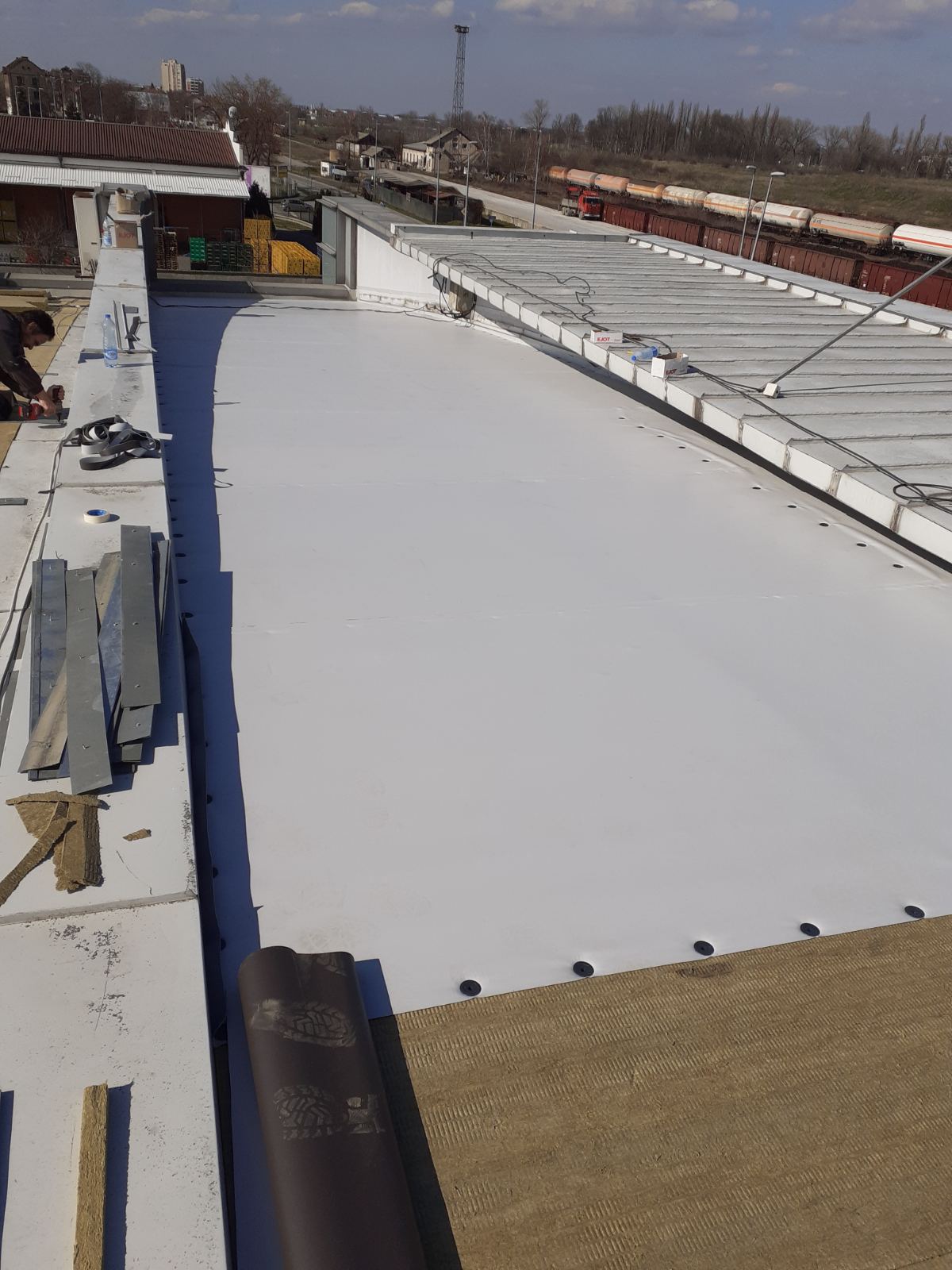

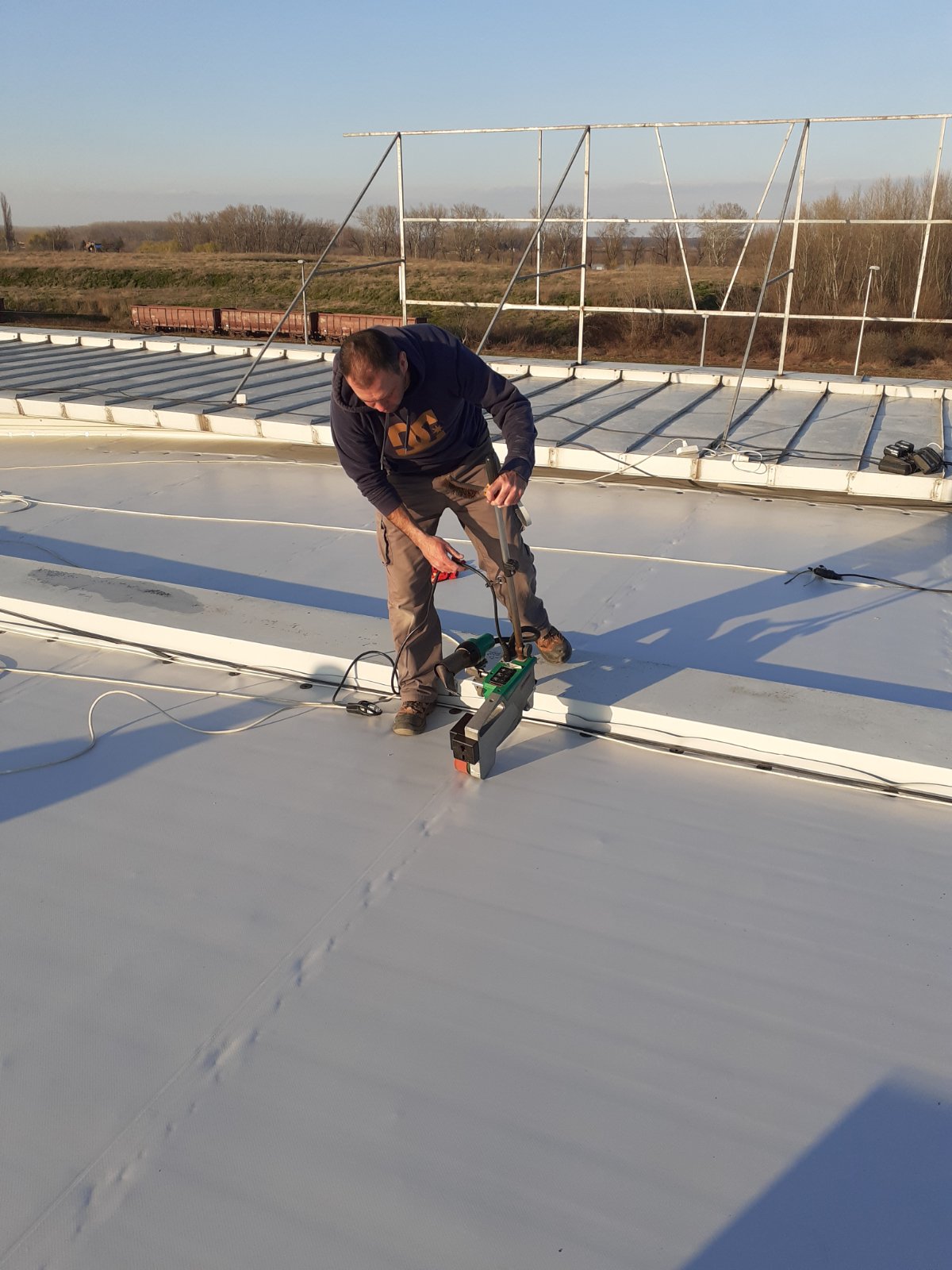

Below are photographs from before the renovation, during installation, and after the completion of insulation and waterproofing.
