At the complex in Stari Banovci, our company carried out the installation of the roofing system on the production hall and administrative building.

For our experienced waterproofing specialists, this project was not a major challenge, as the work was performed routinely, with a strong focus on quality, which is a fundamental principle of our company.

In collaboration with the German company ‘Bauder‘, the final layer of the roofing system was installed using a UV-stable PVC waterproofing membrane ‘Thermofol M 15‘ with a thickness of 1.5 mm.

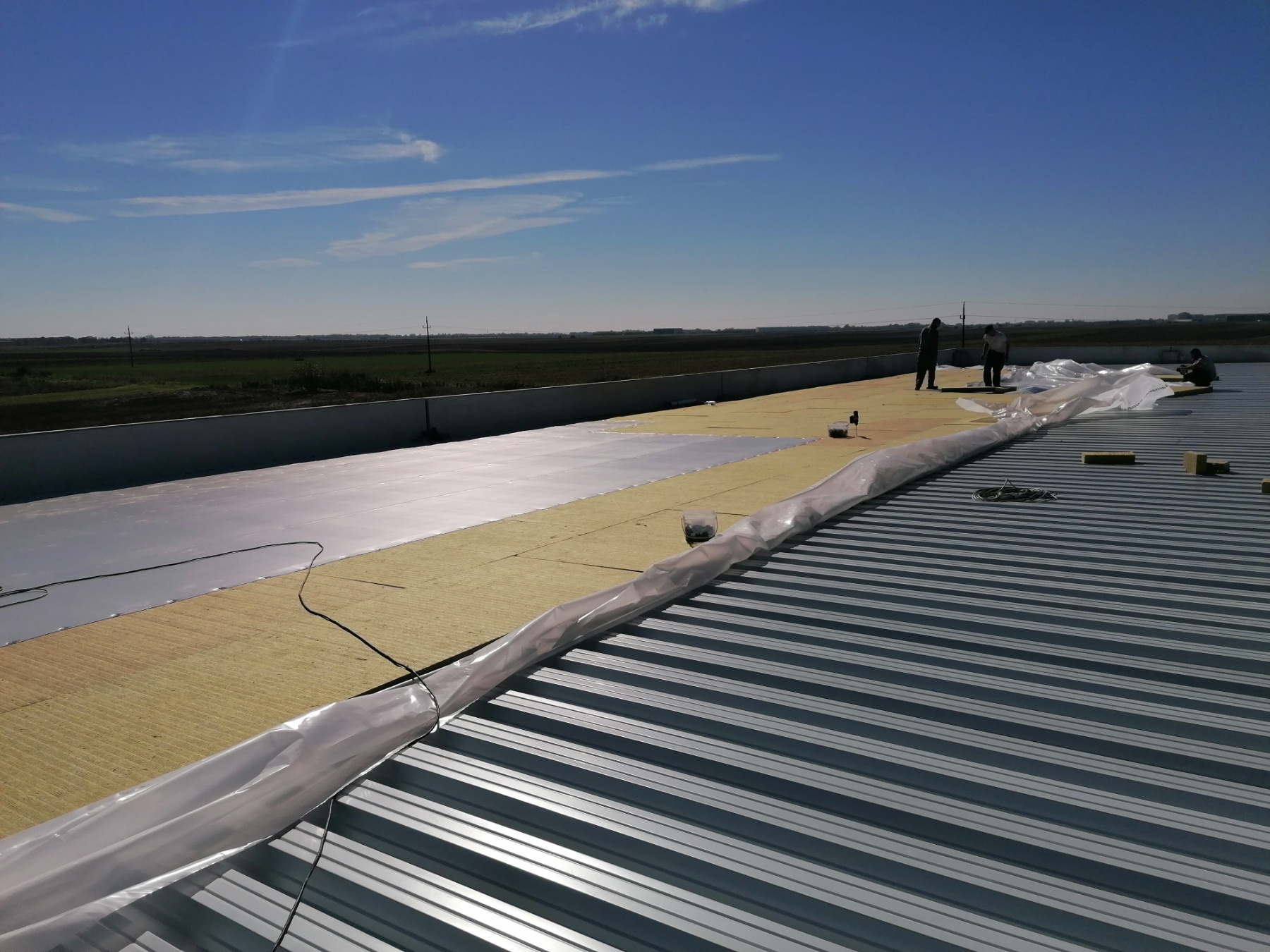

Roofing system layers:

  • Reinforced concrete structure made of prefabricated elements
  • Structural load-bearing trapezoidal metal sheet
  • Vapor barrier – PE foil
  • Rigid compressed rock wool insulation
  • Waterproofing membrane

The total installed waterproofing area on both buildings is approximately 1,350 m².

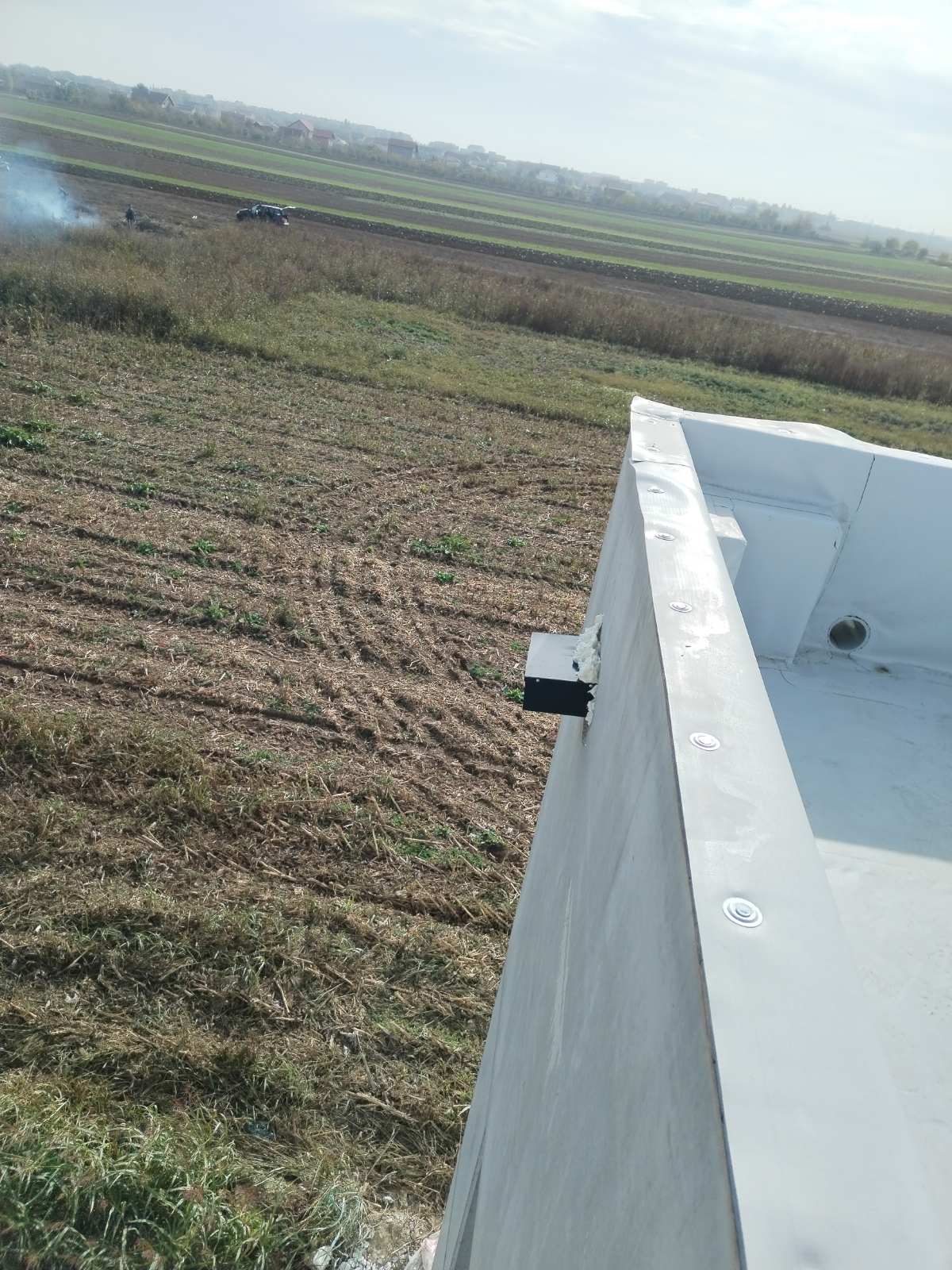

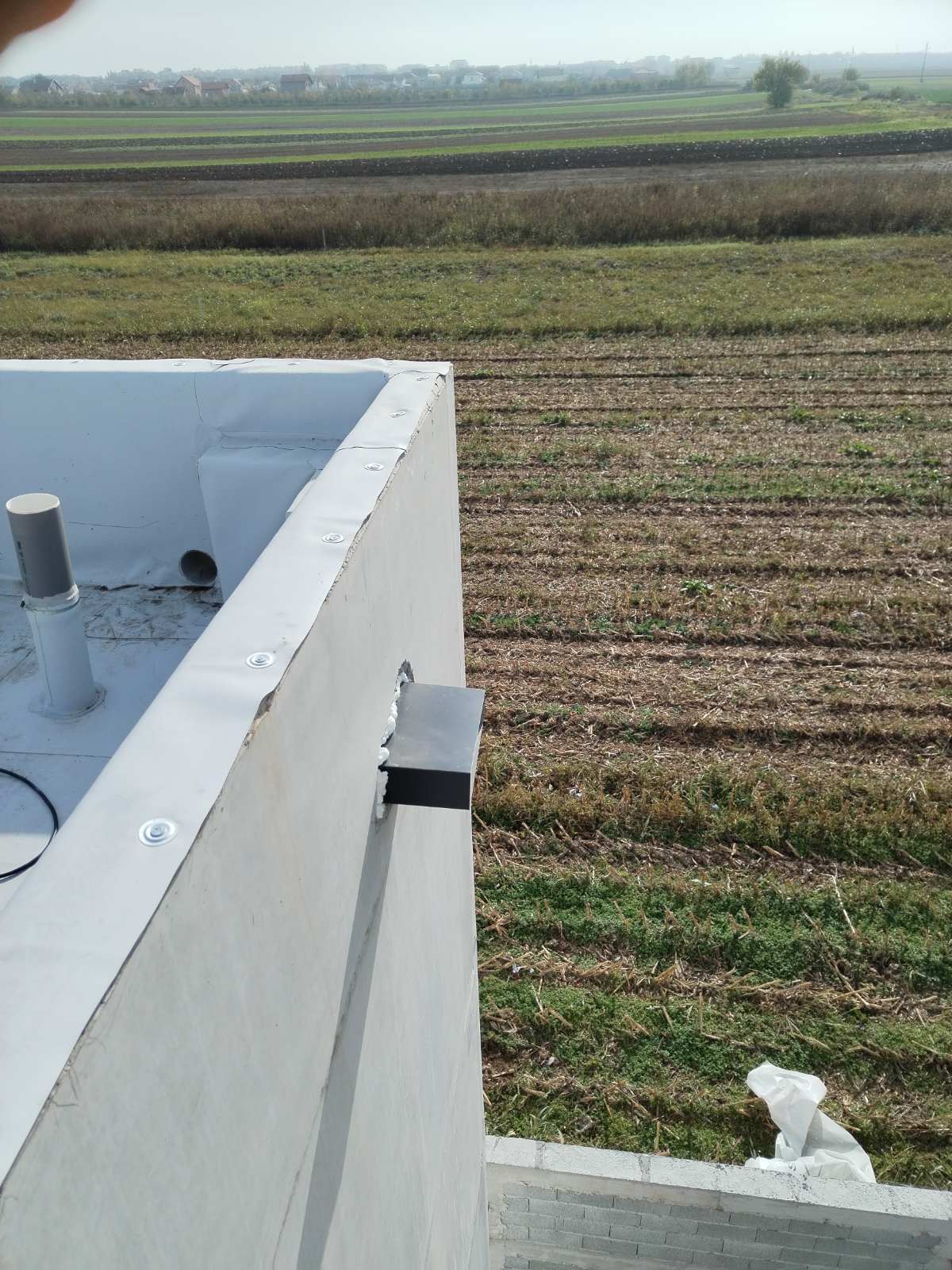

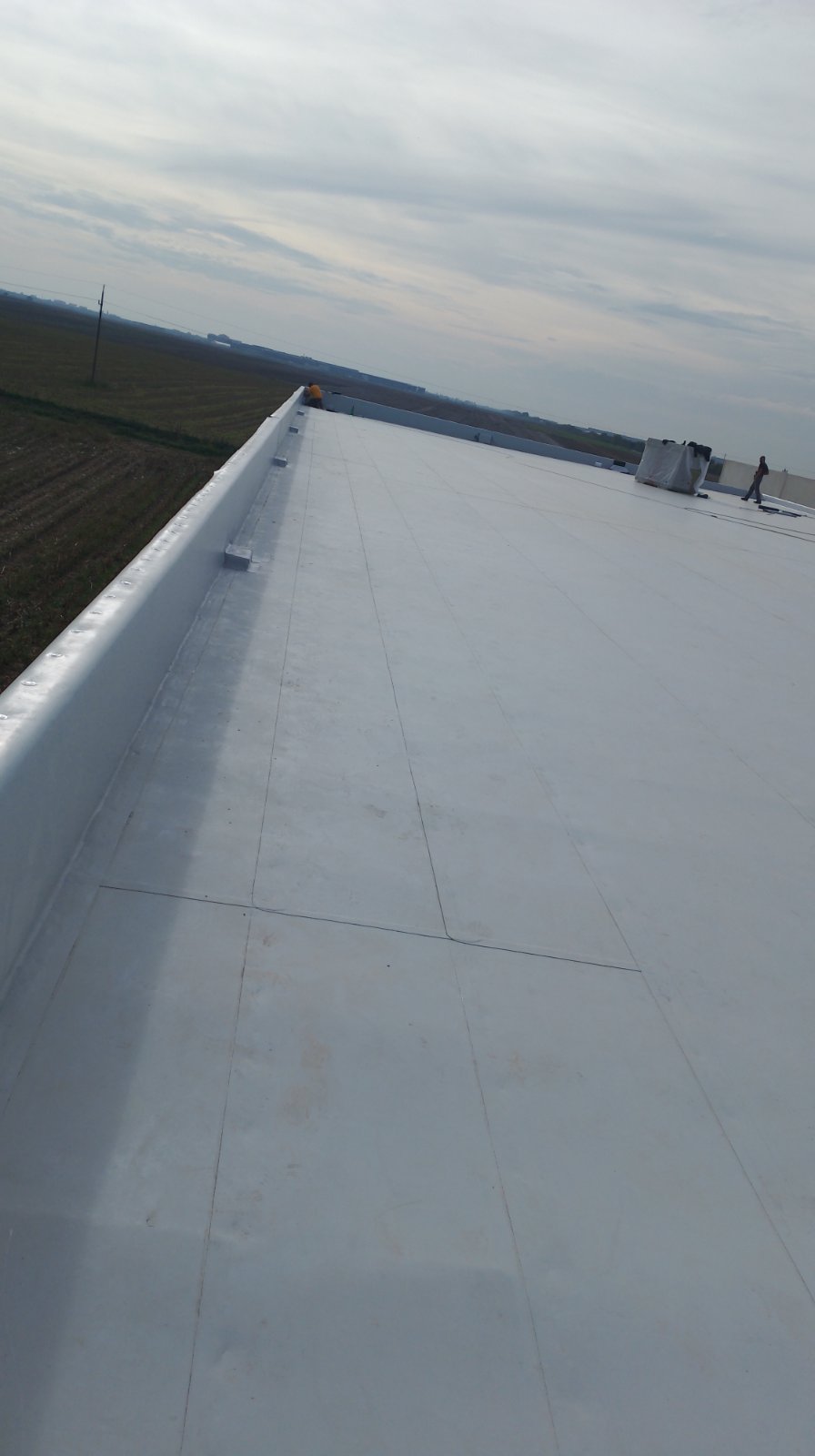

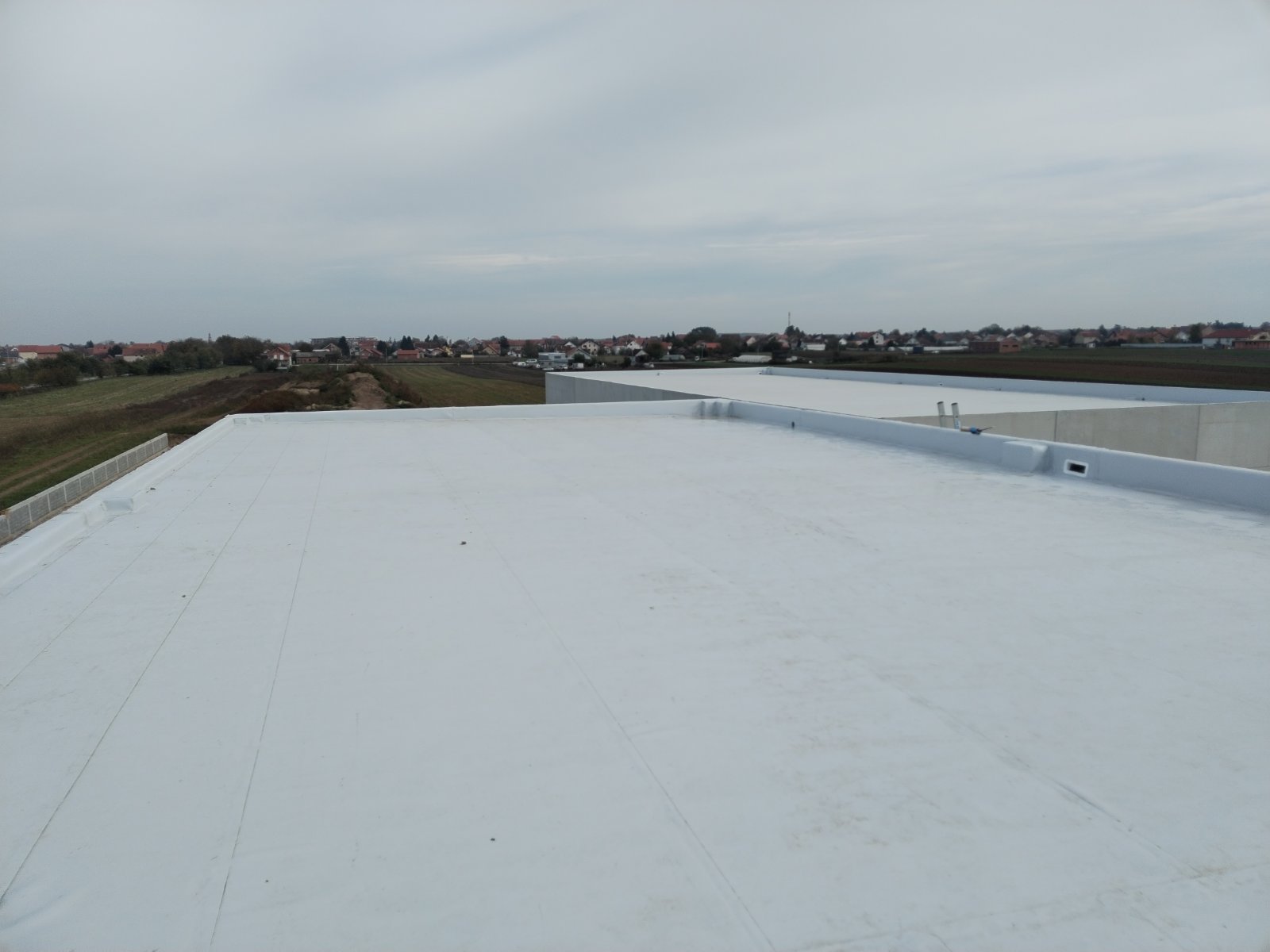

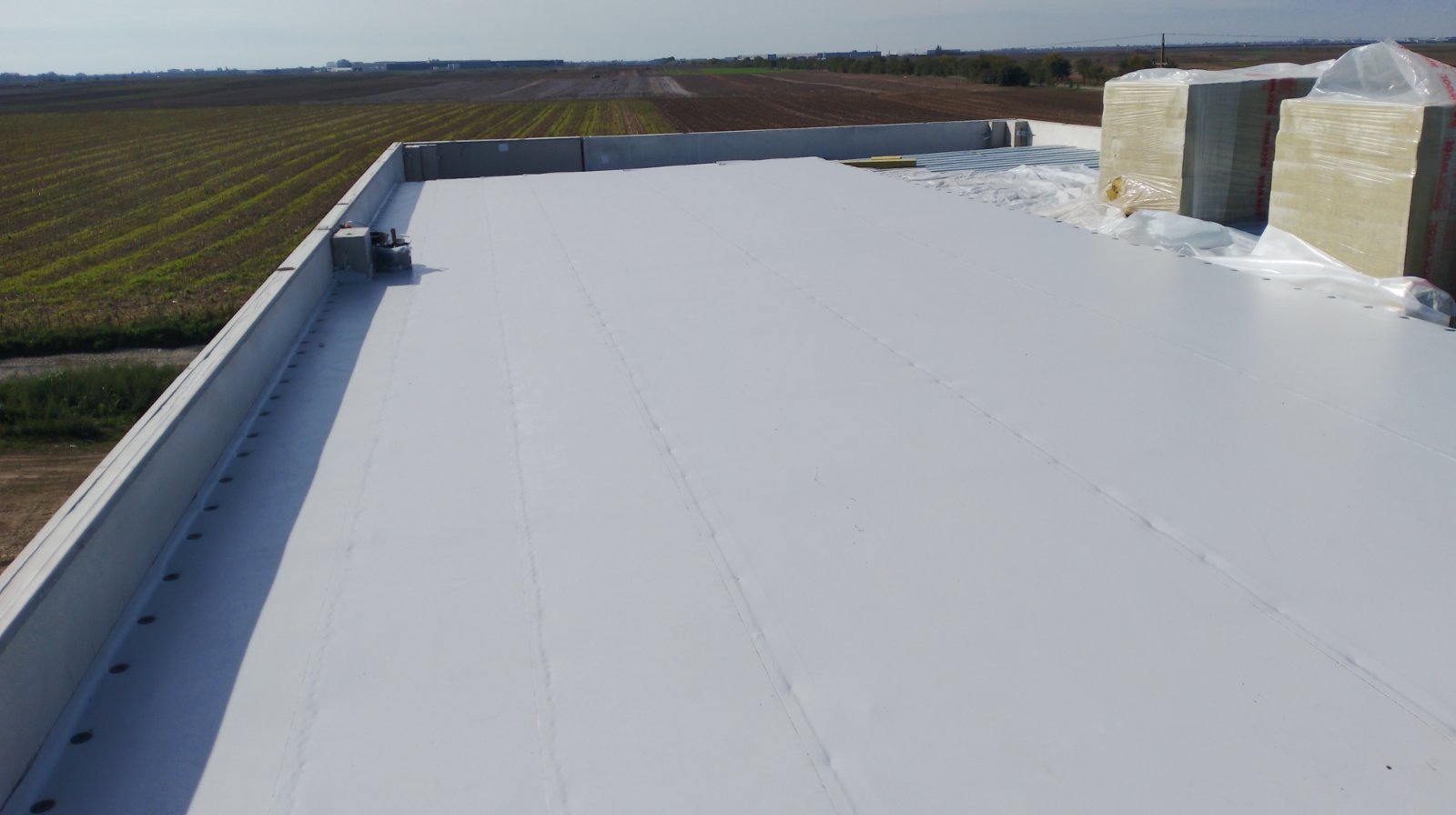

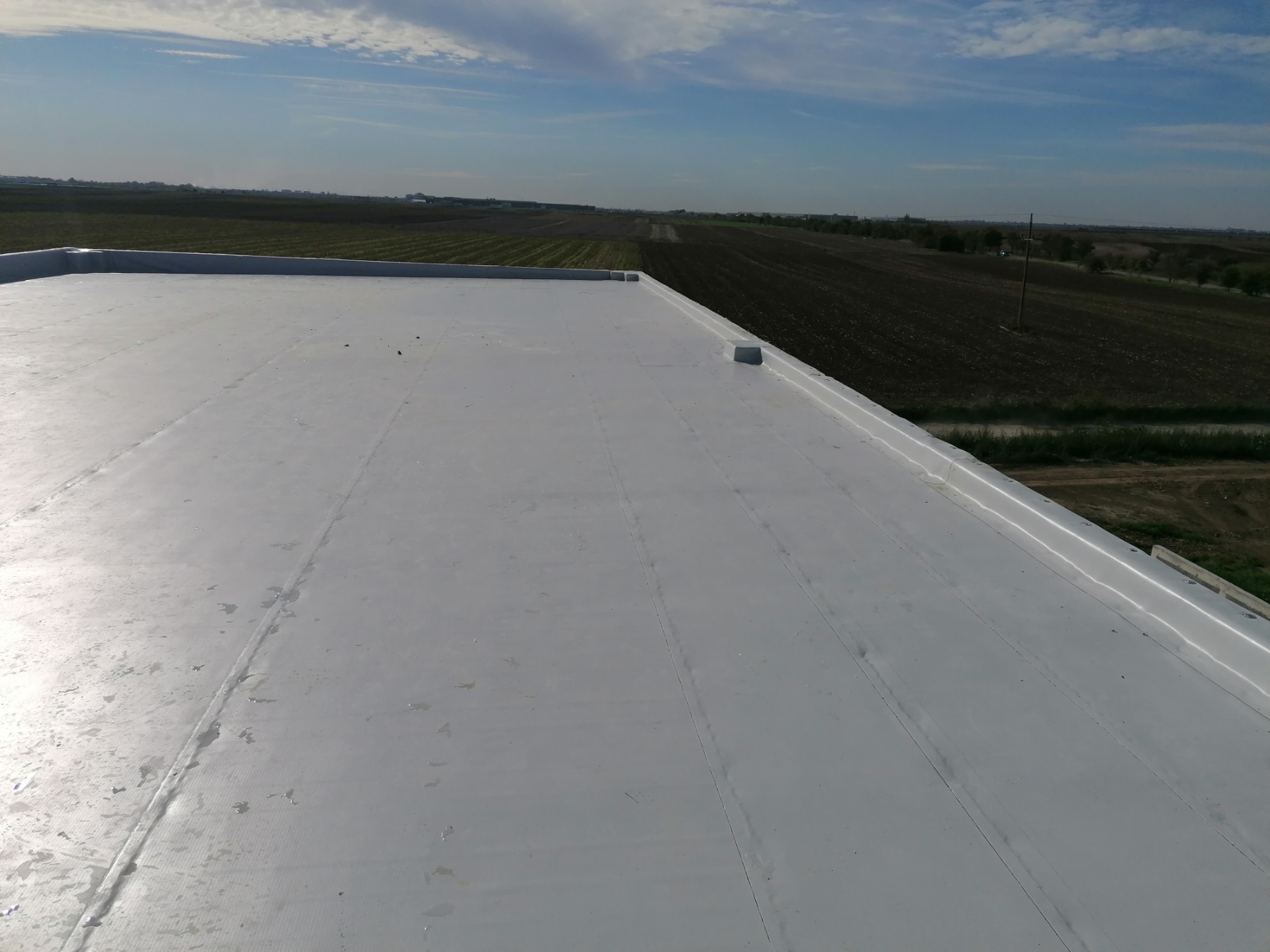

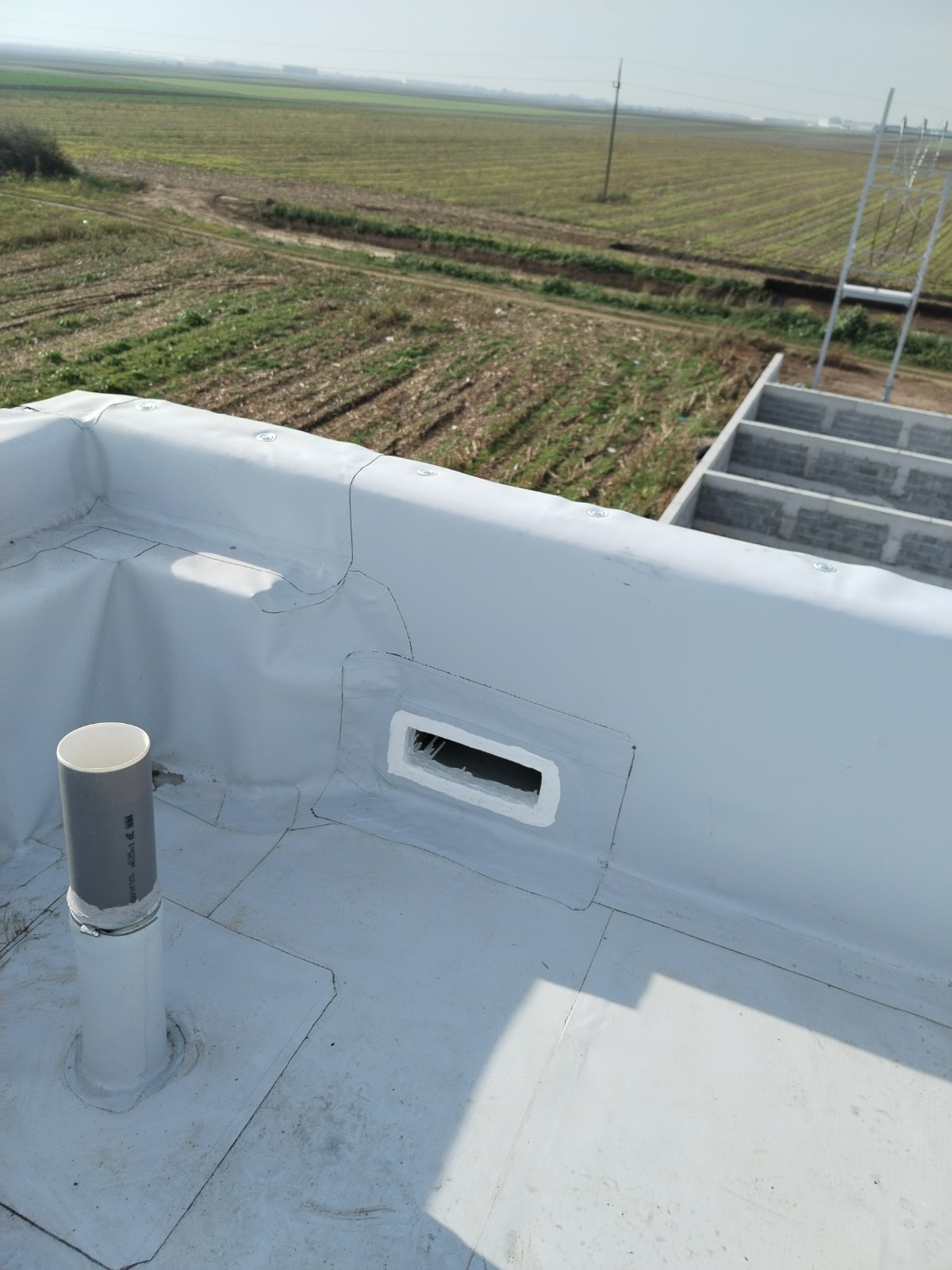

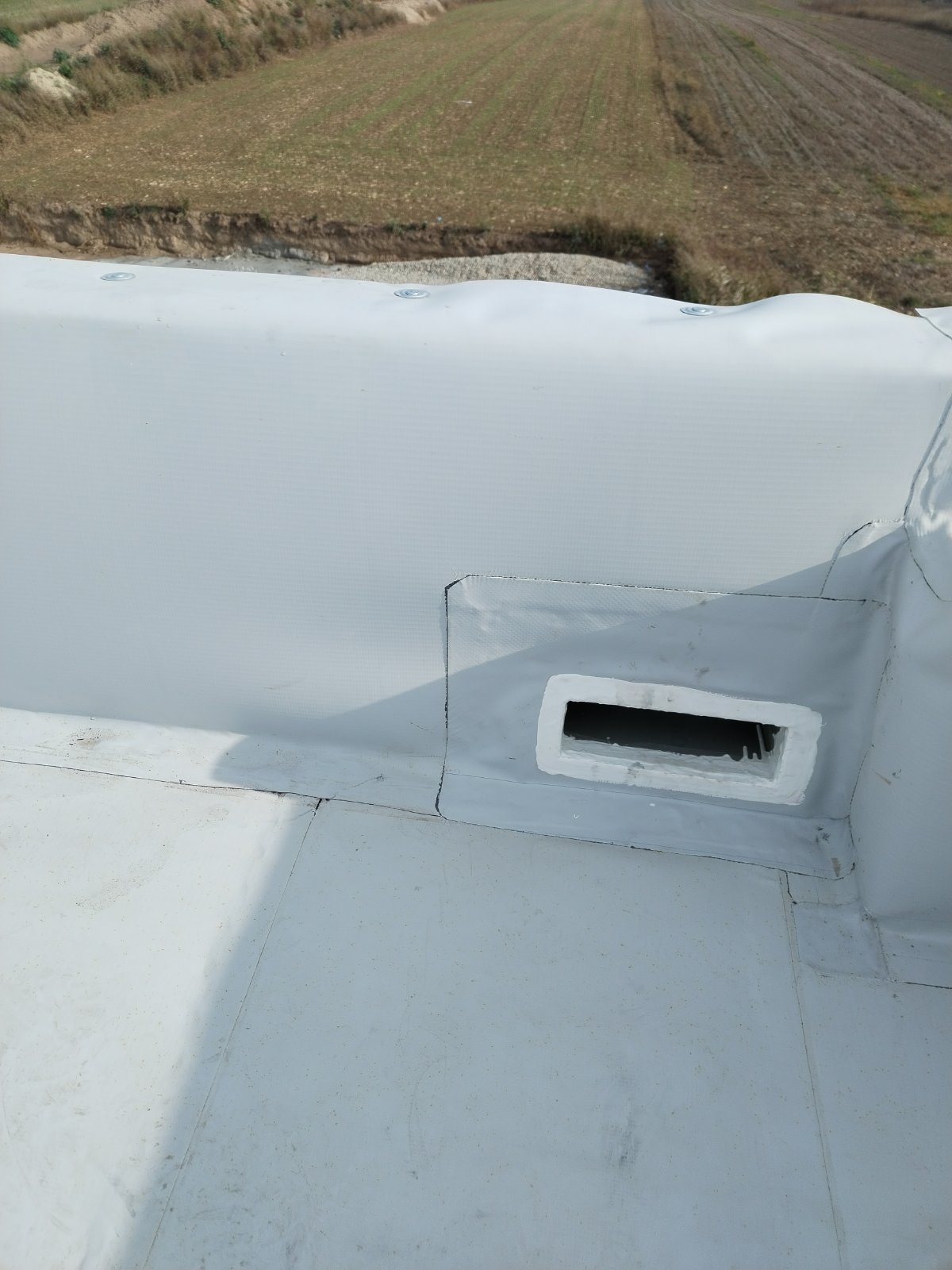

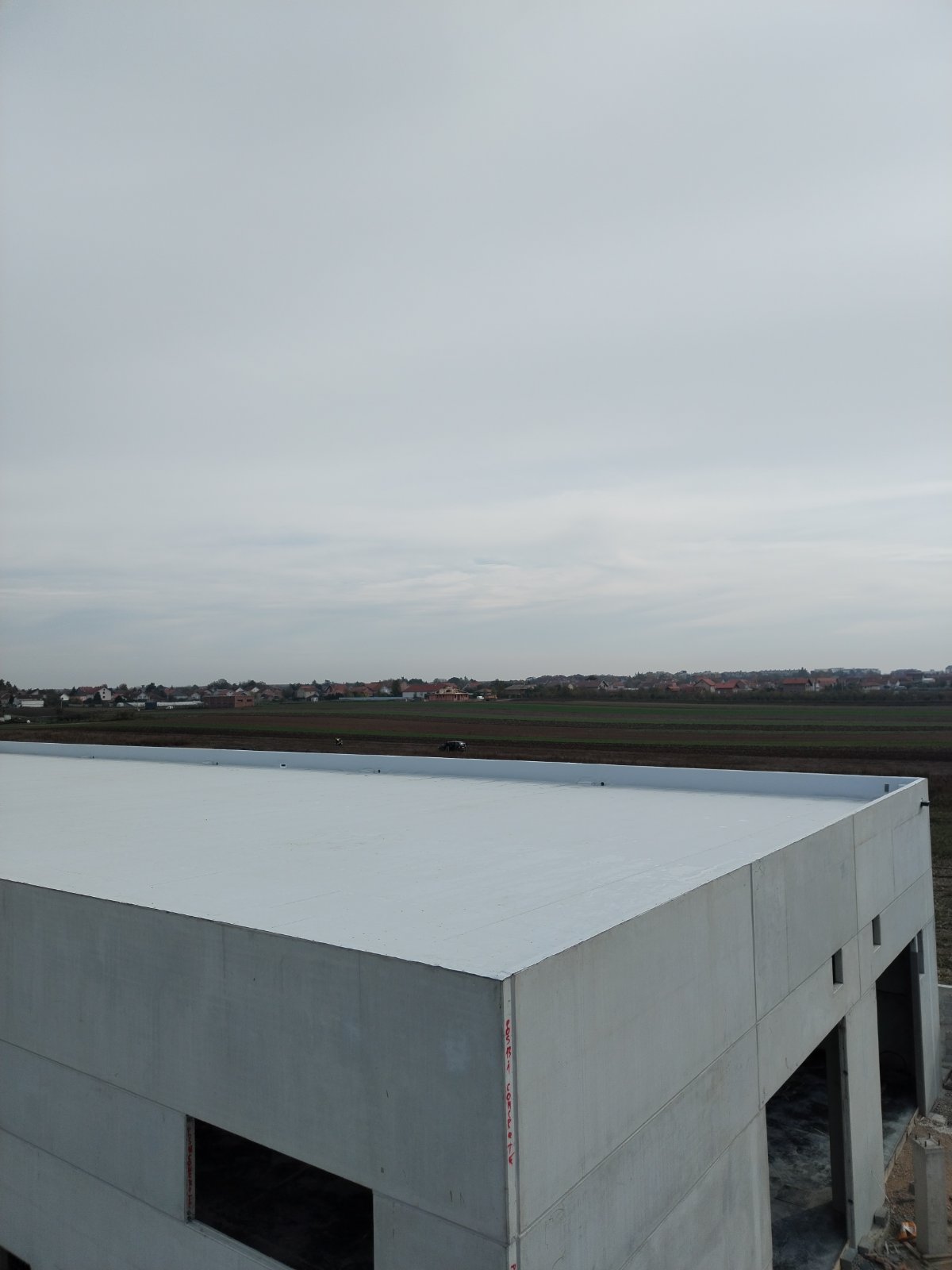

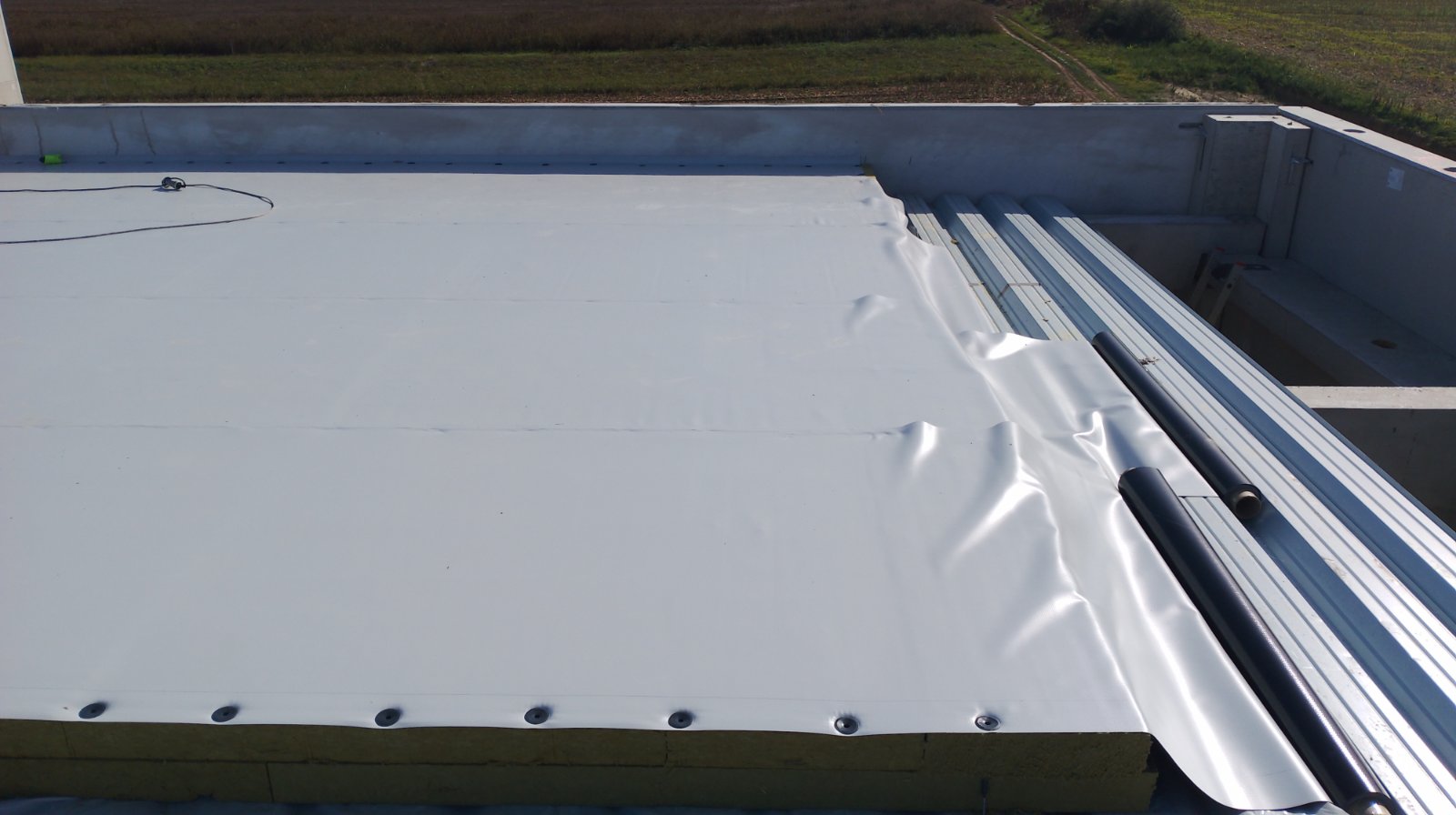

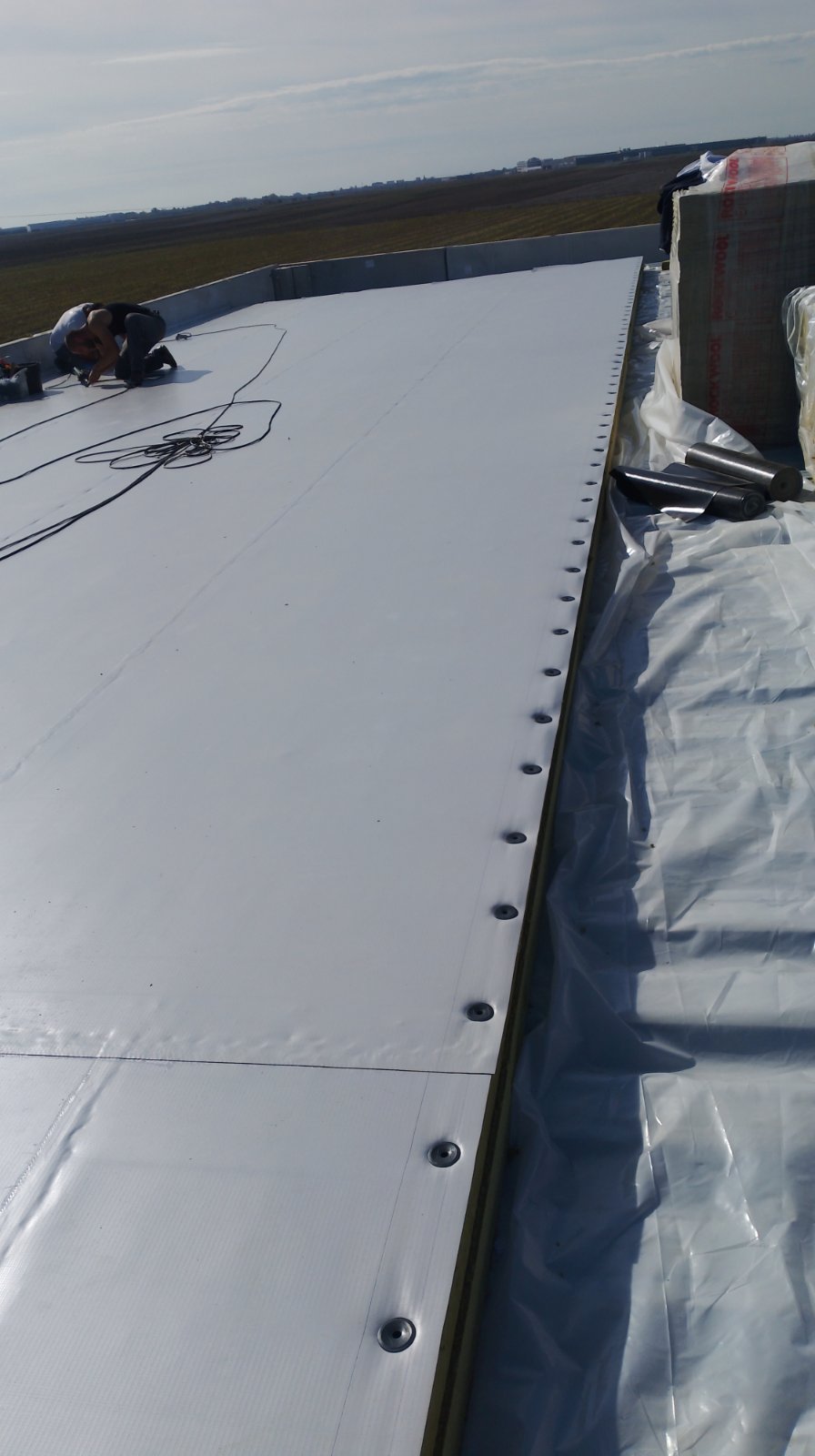

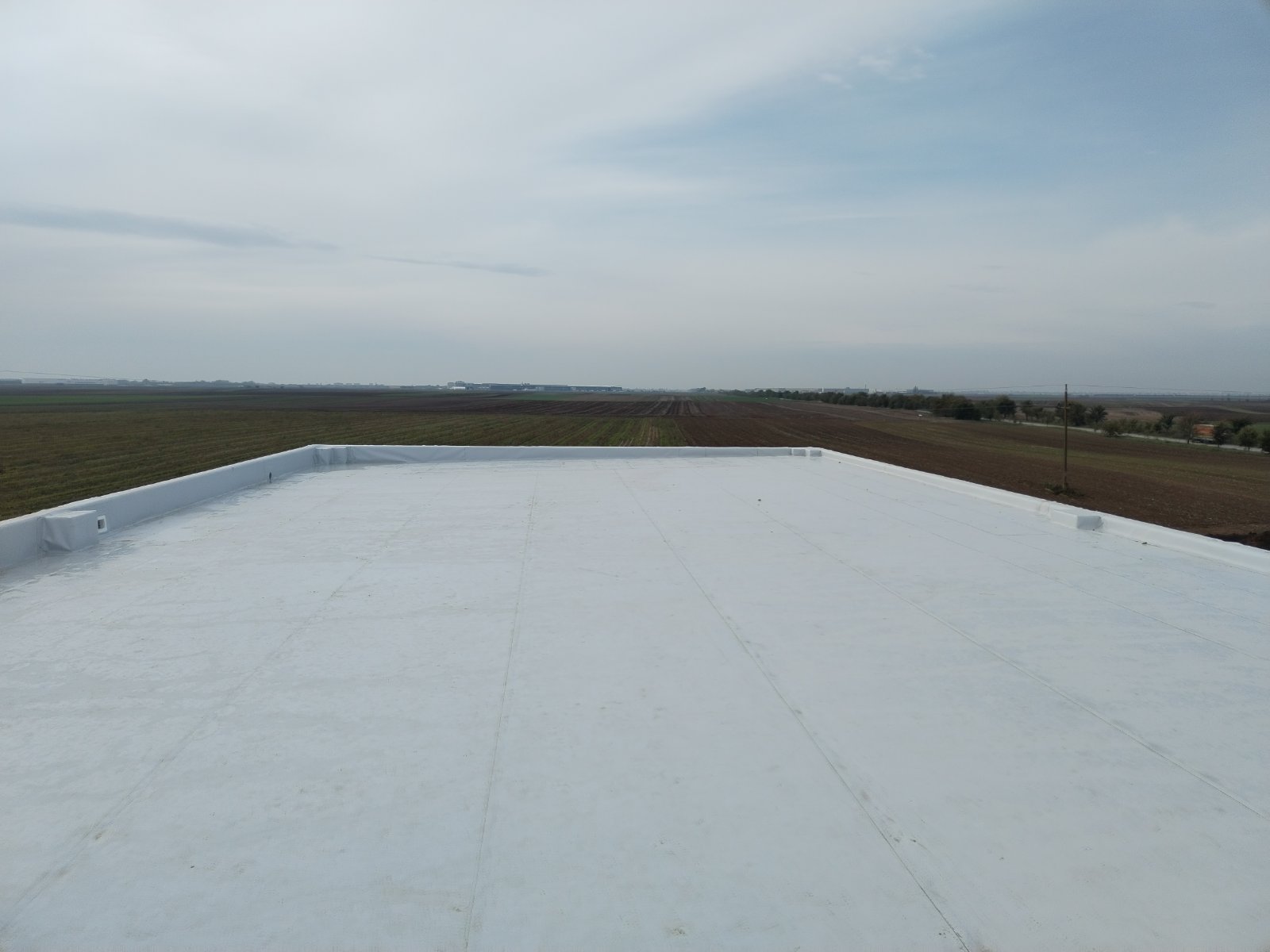

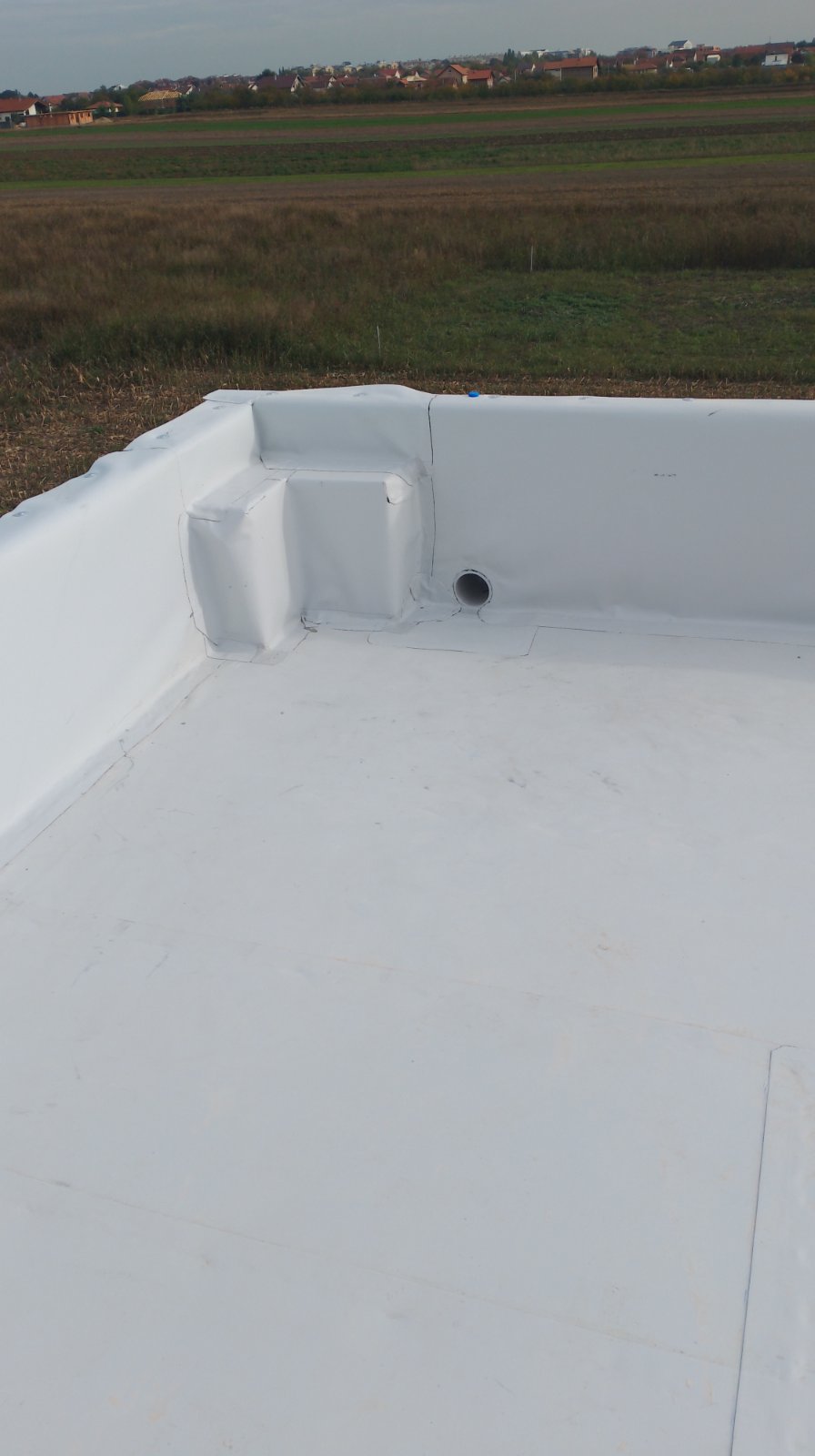

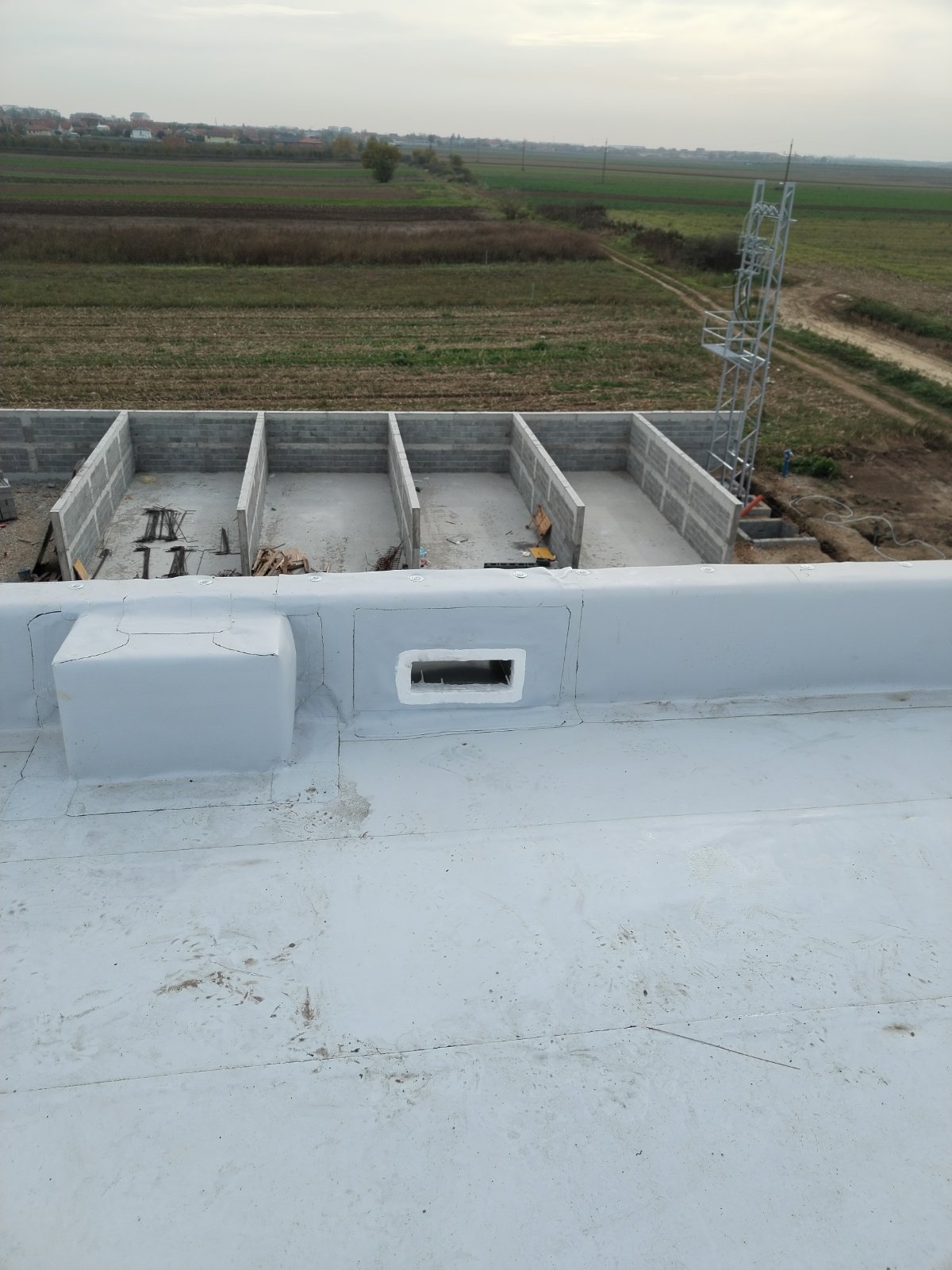

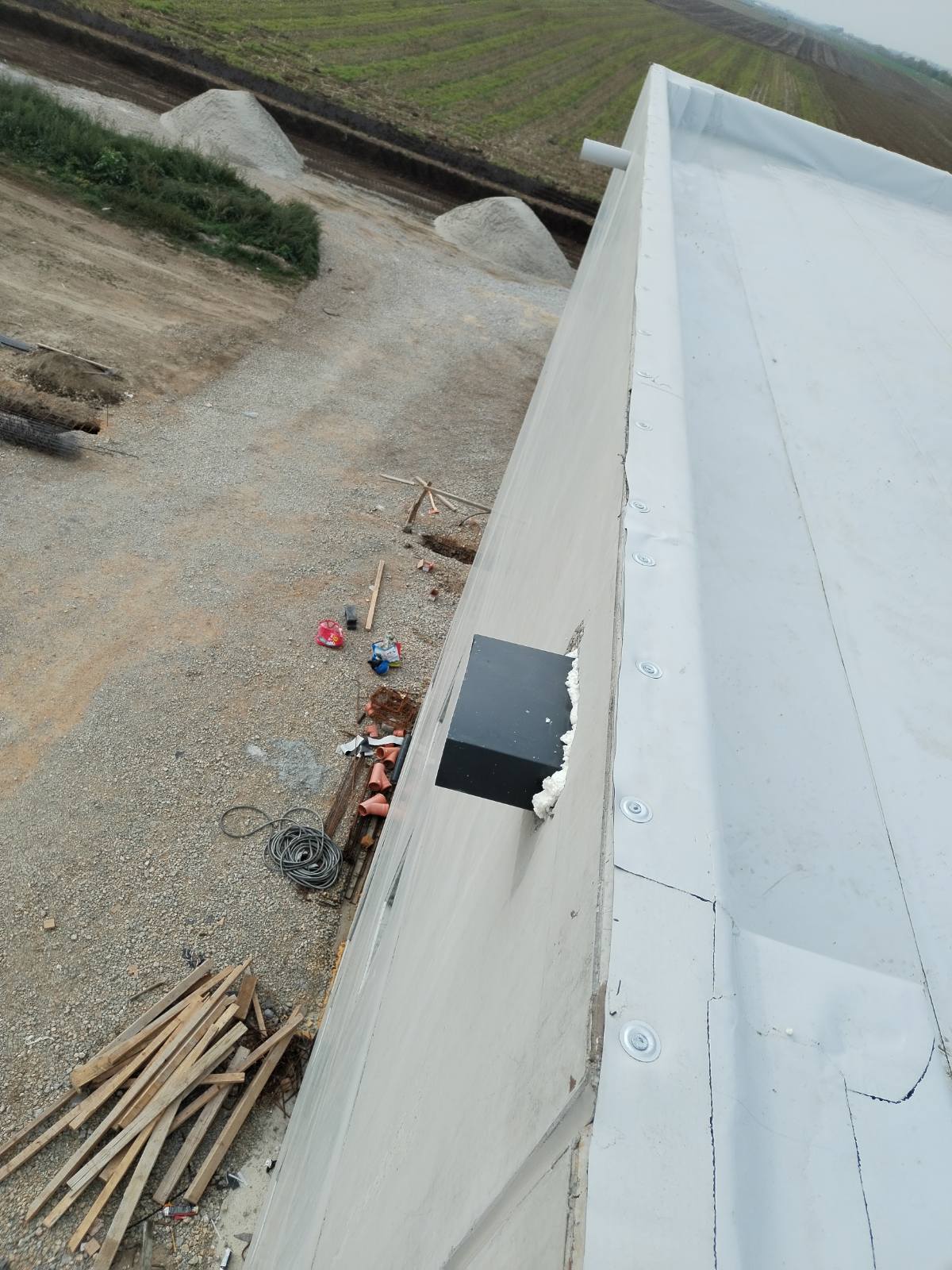

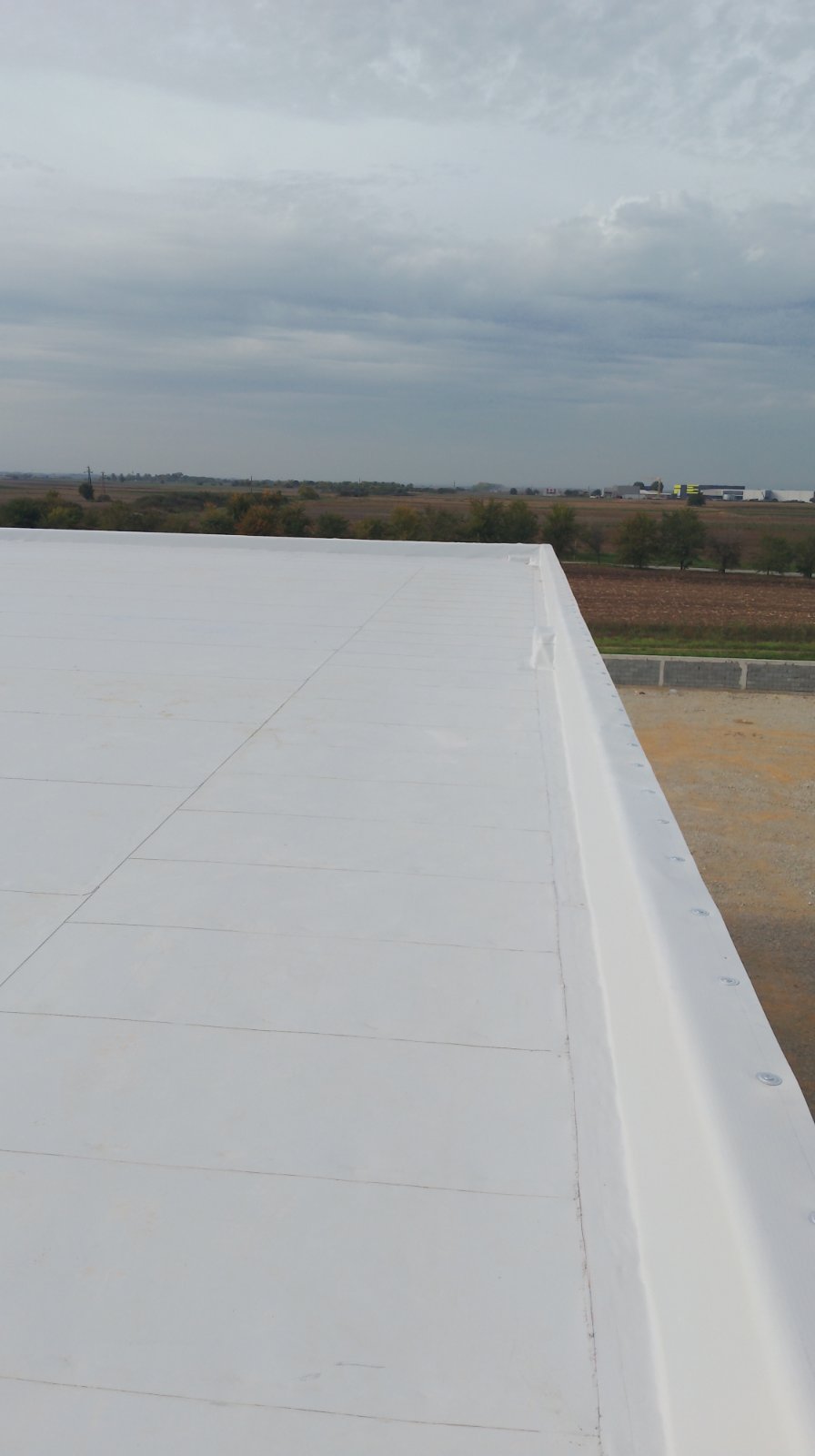

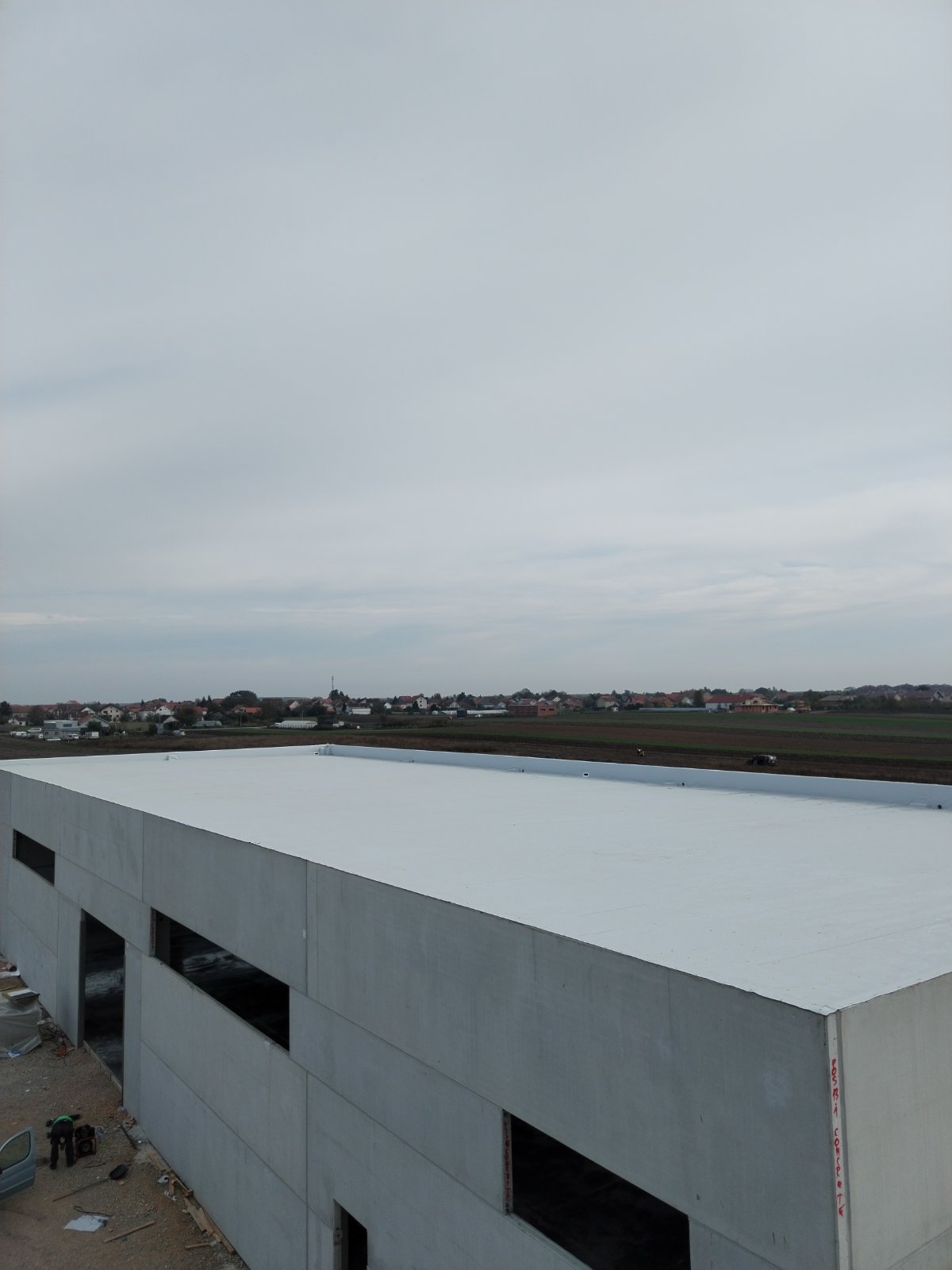

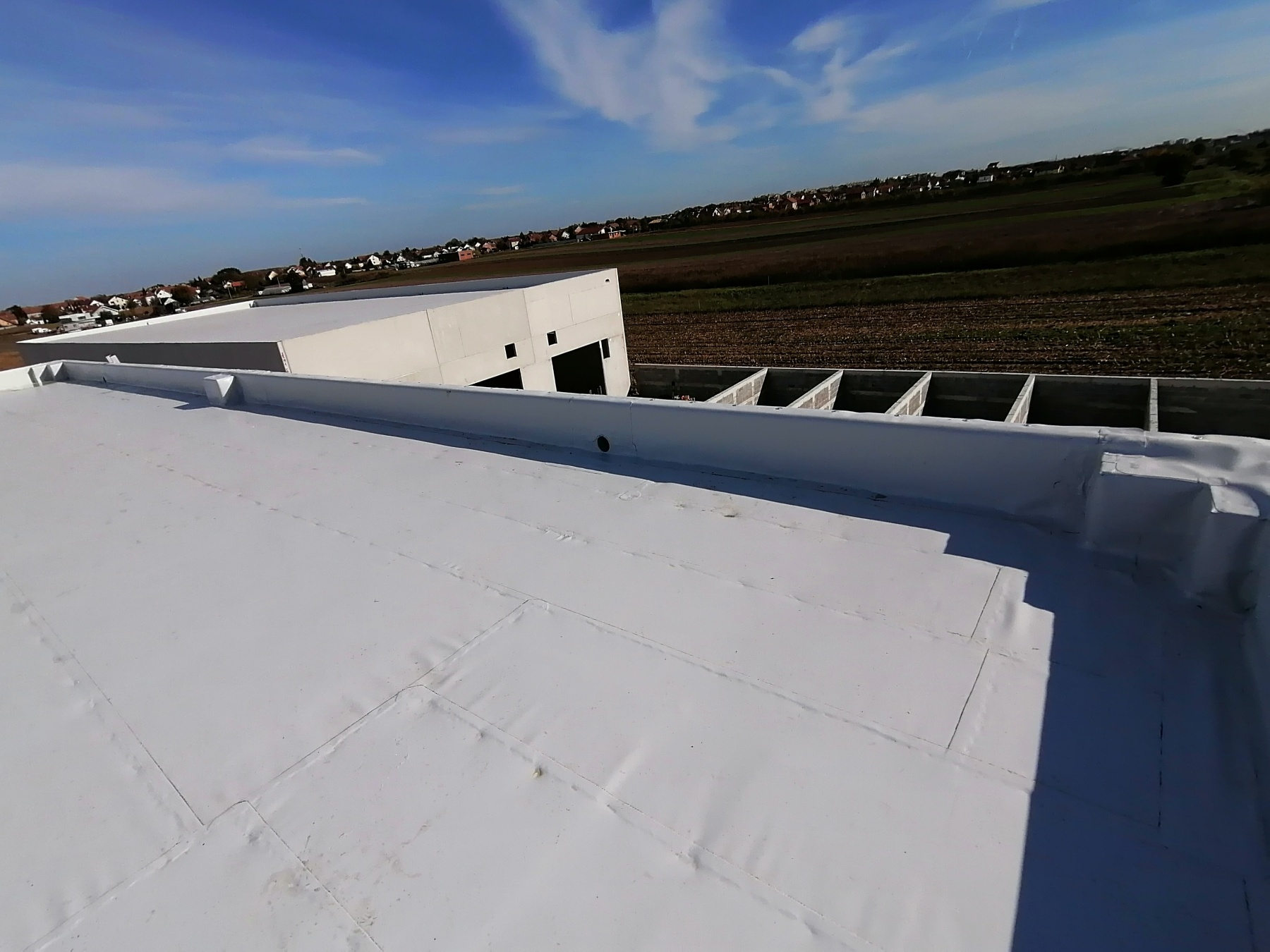

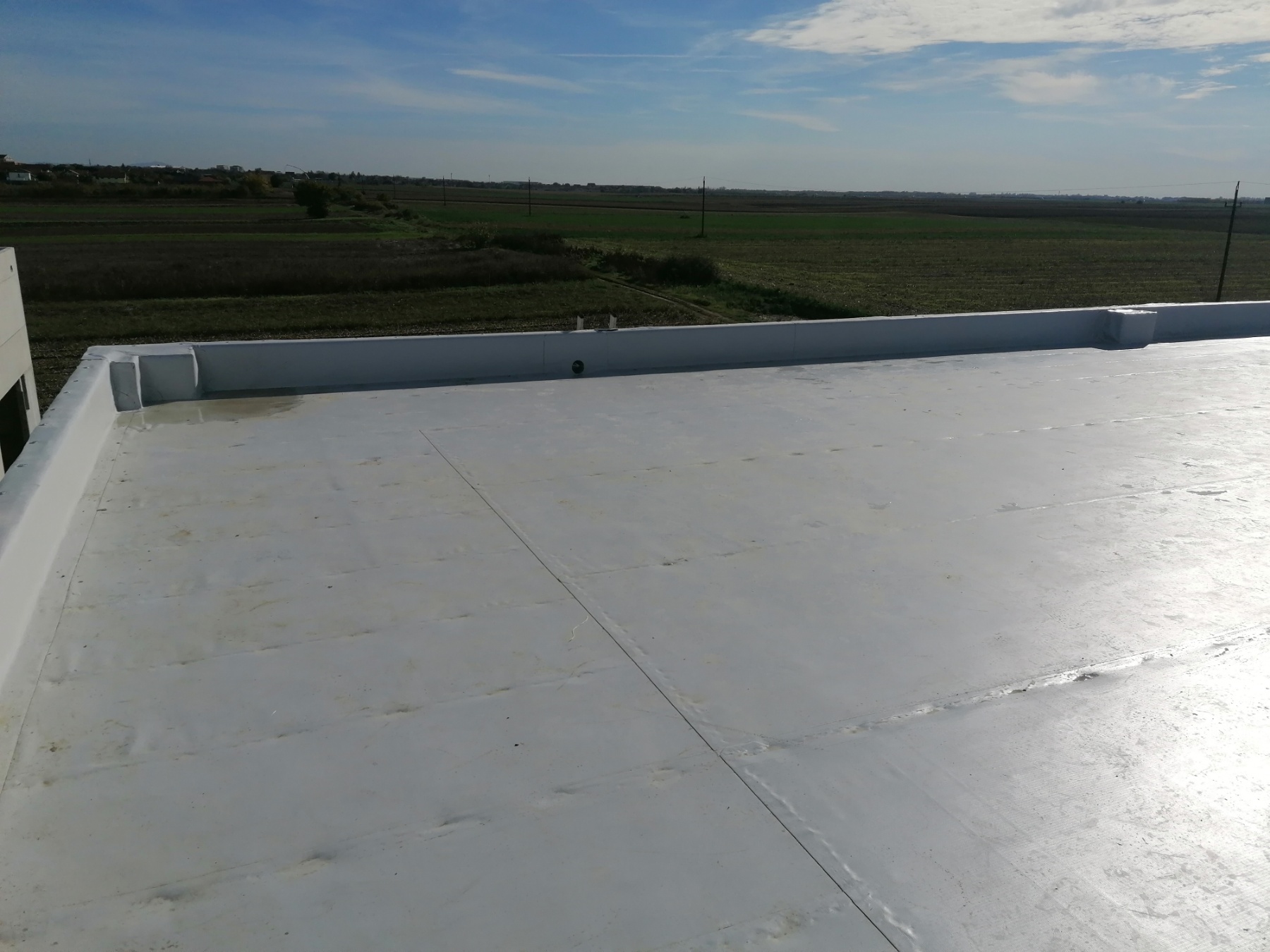

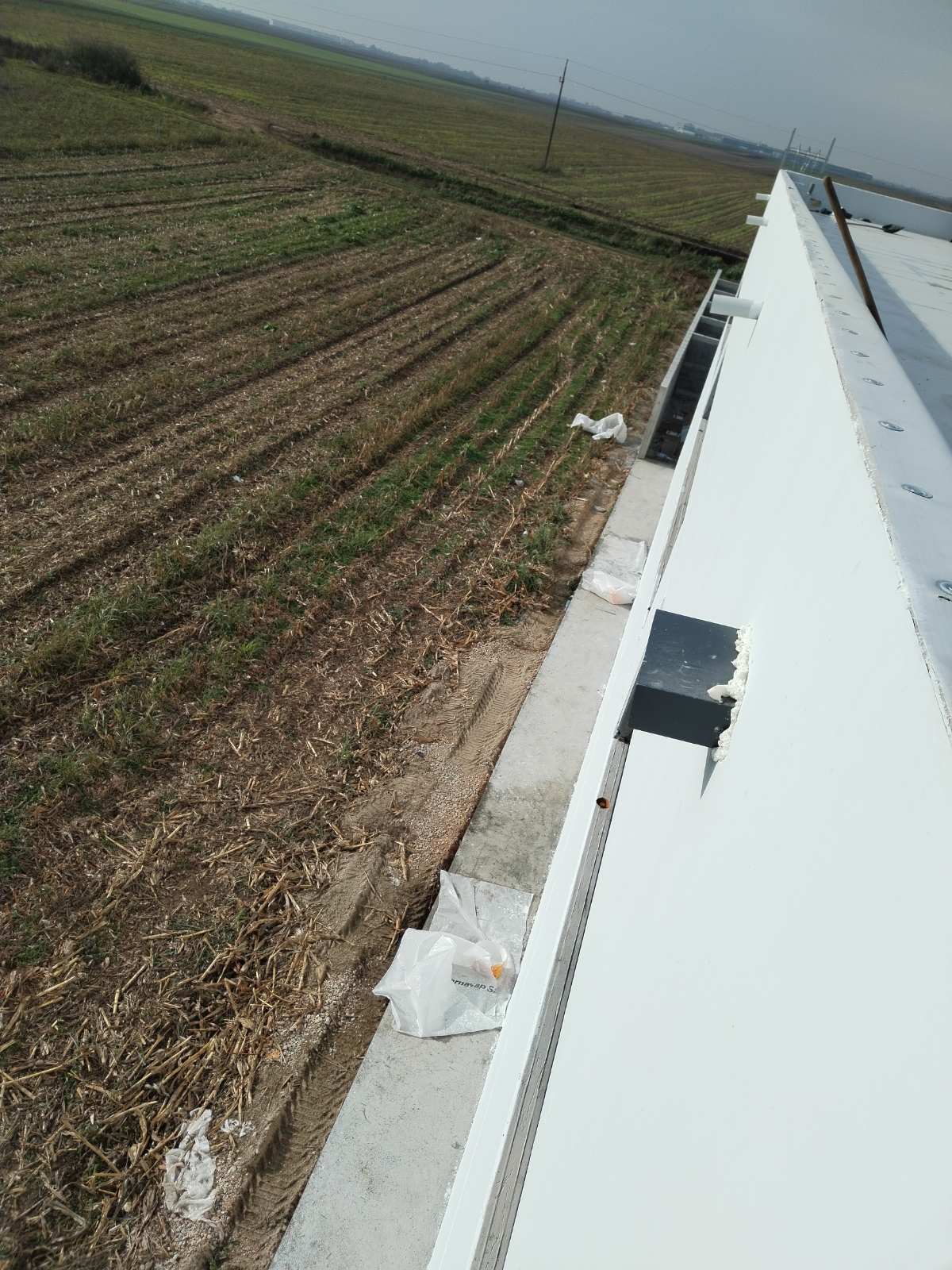

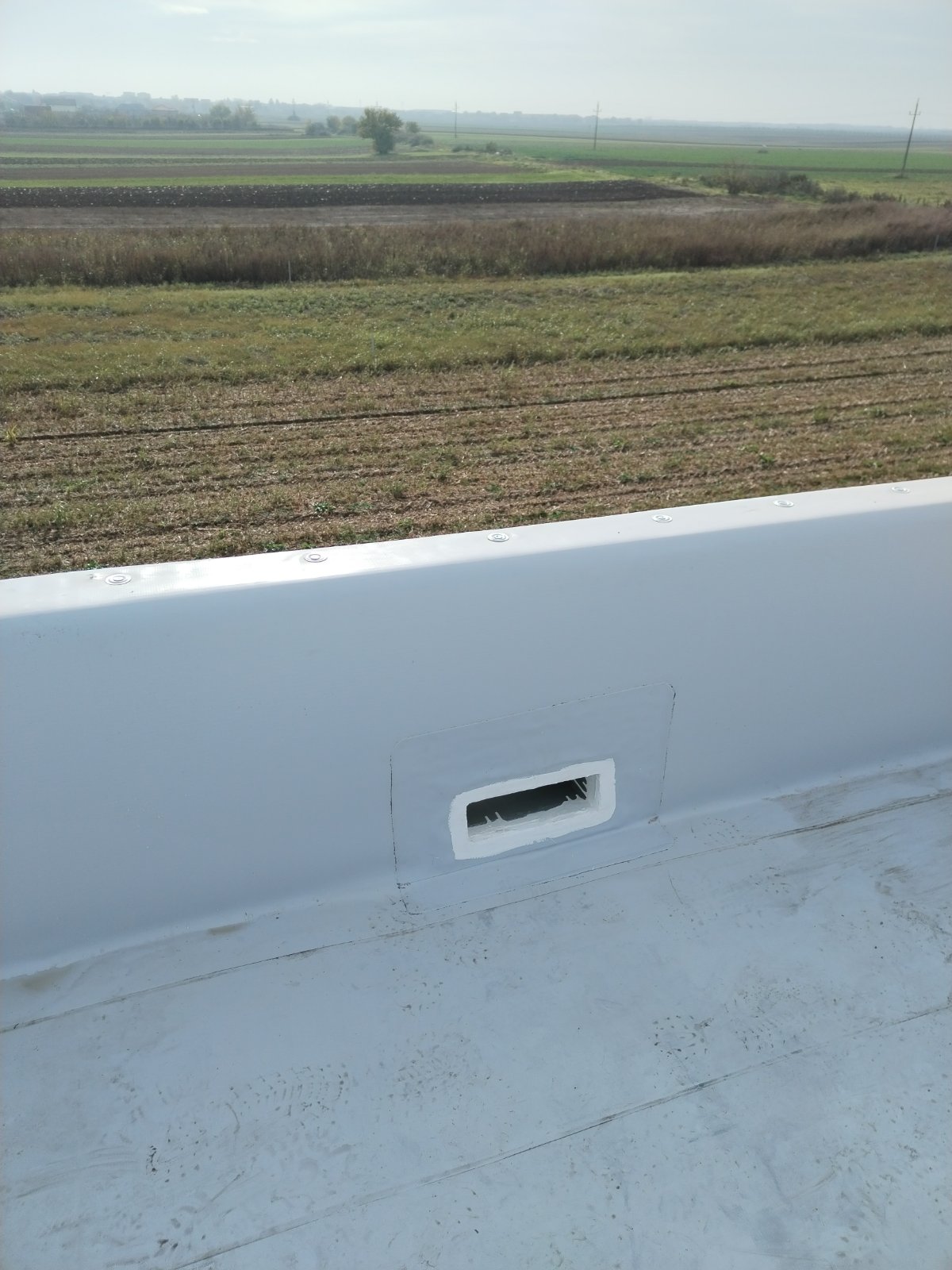

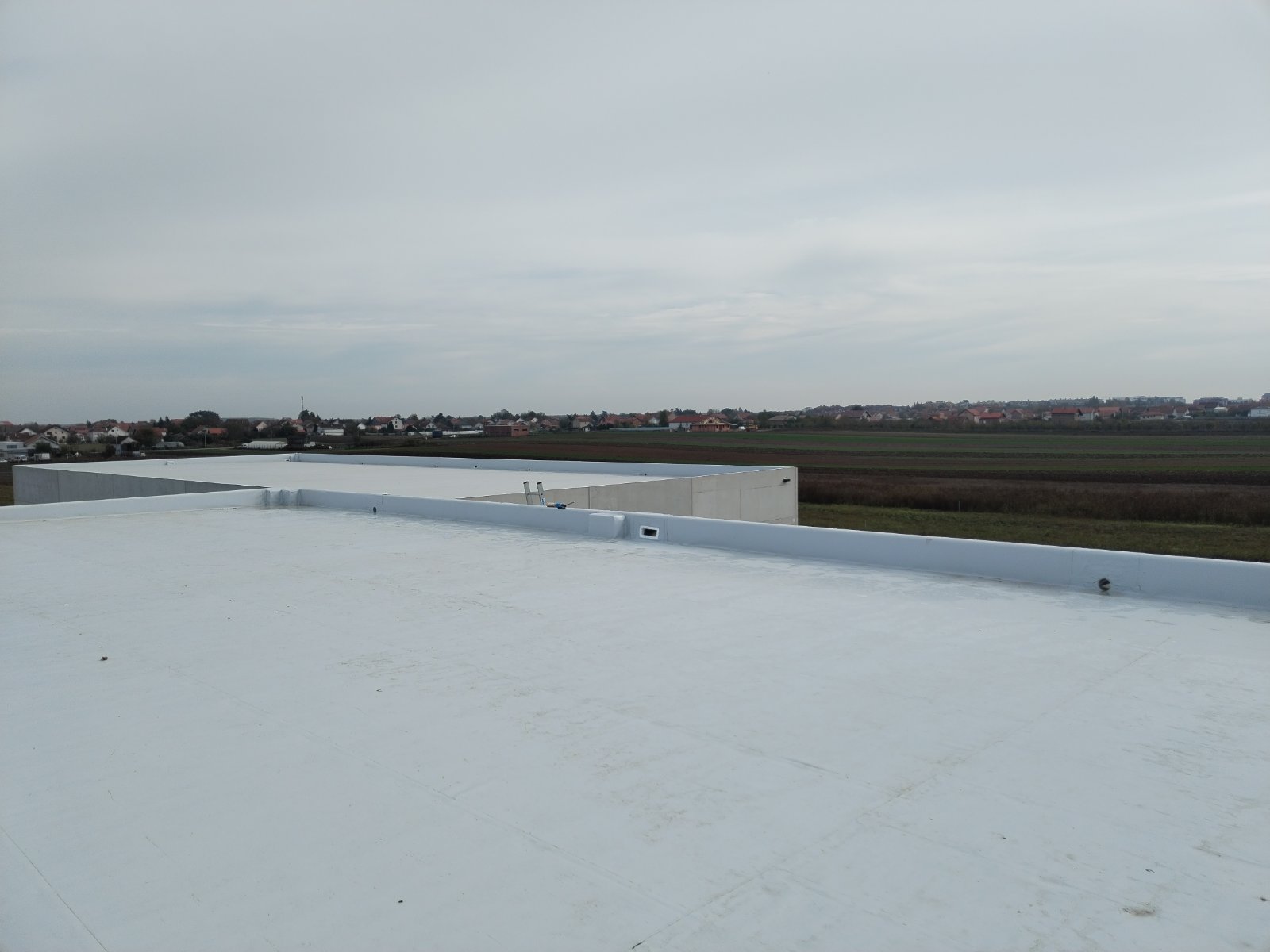

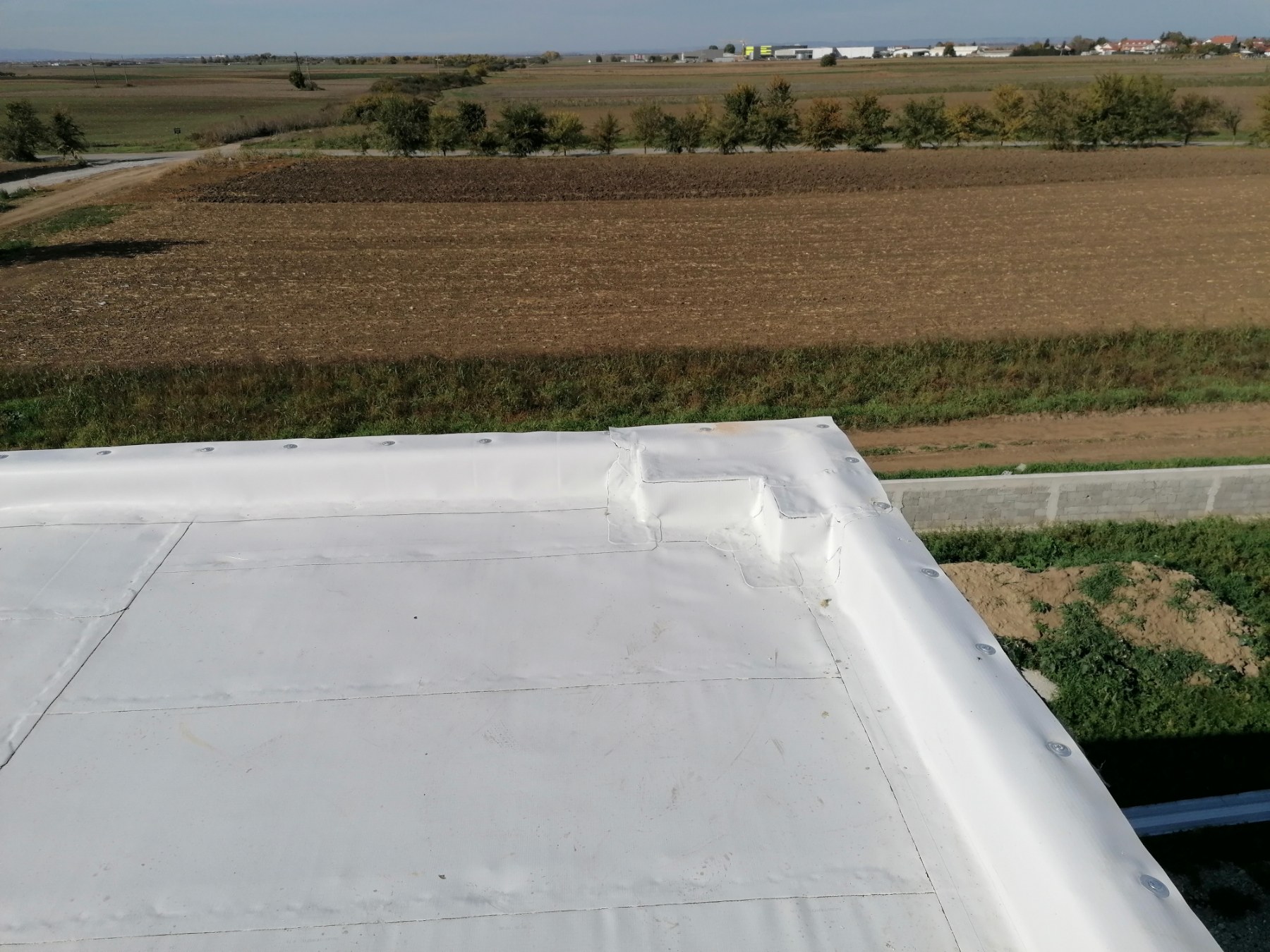

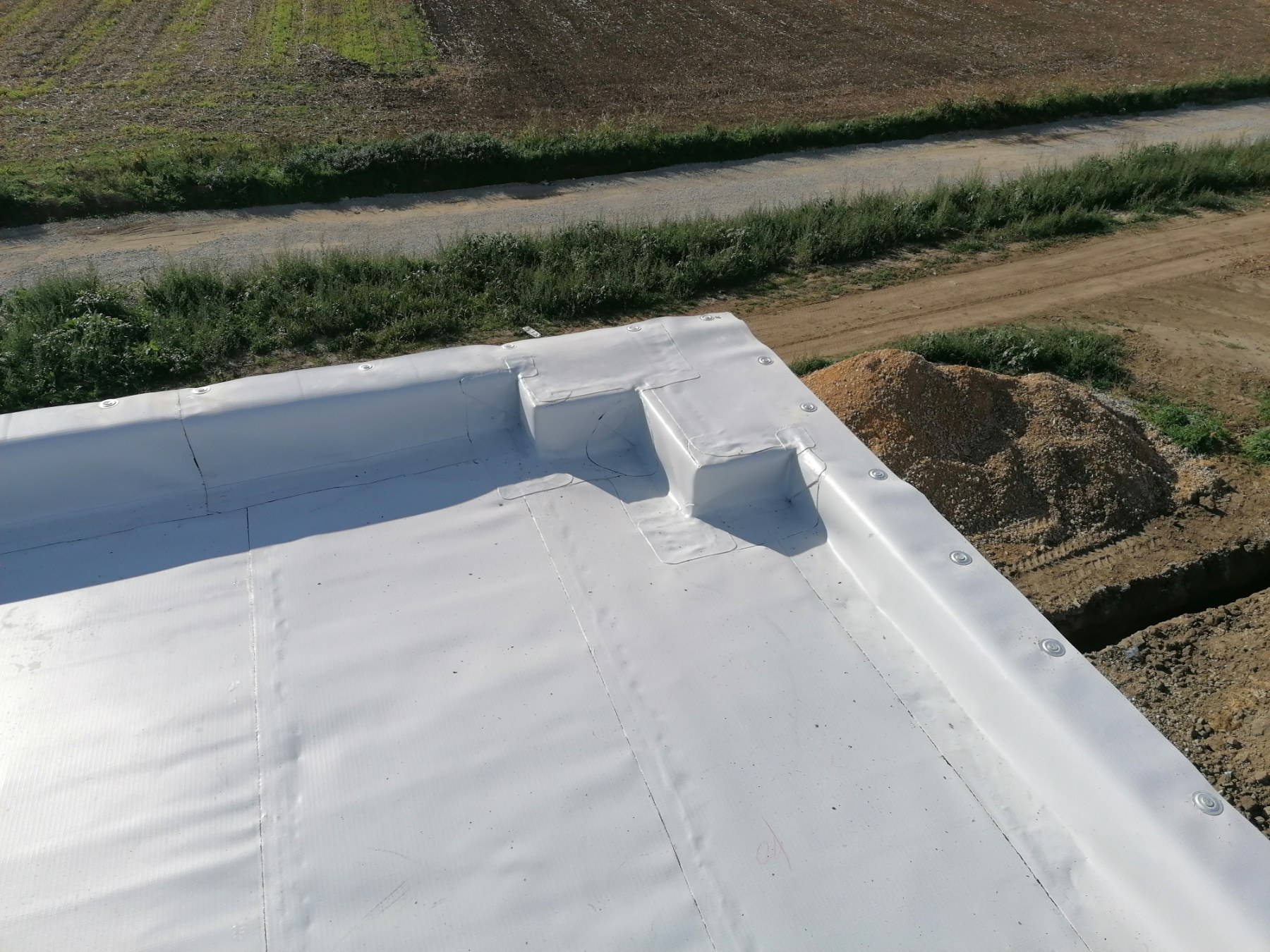

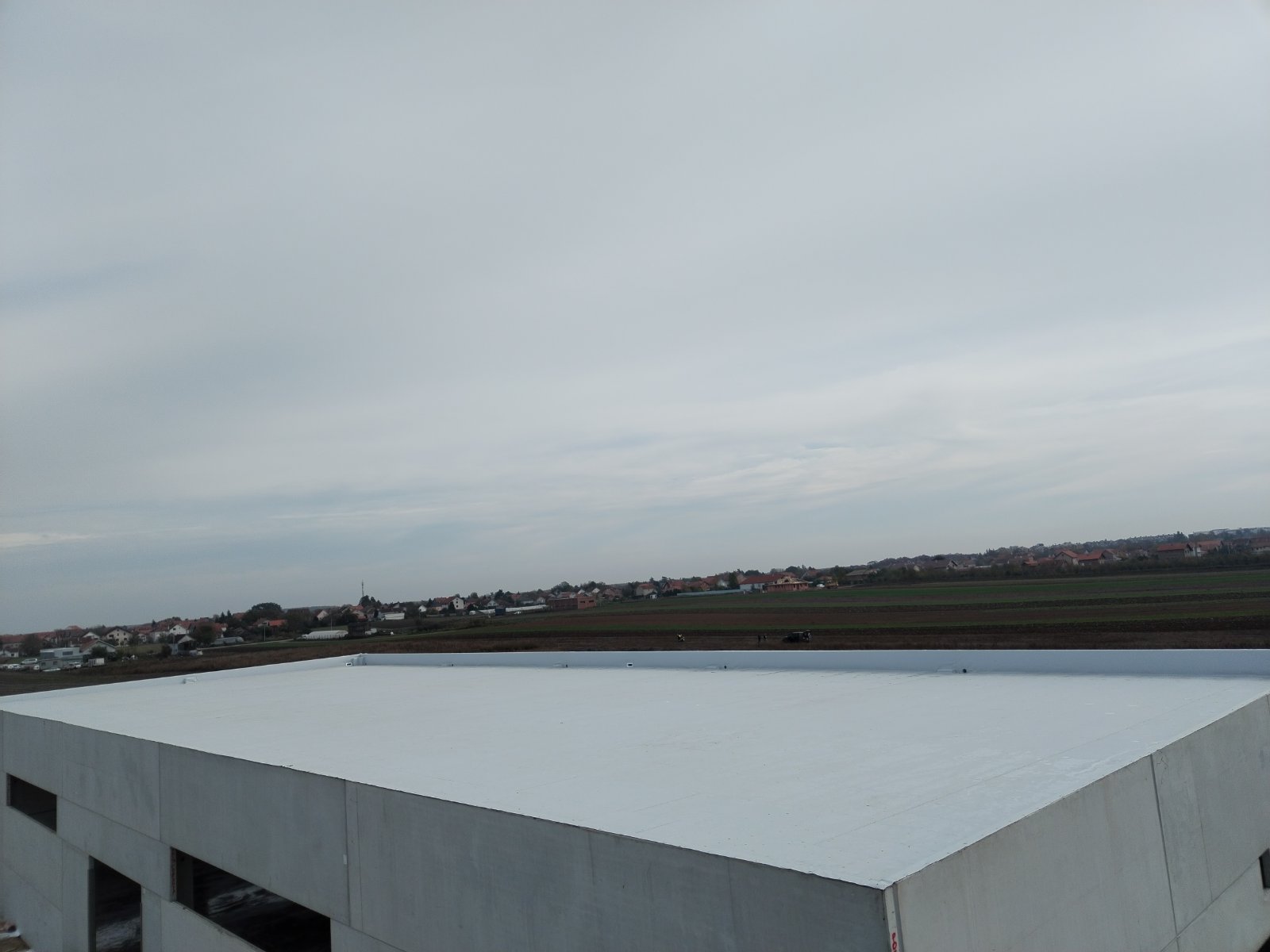

In the gallery, you can view photos taken during the installation and after project completion.
